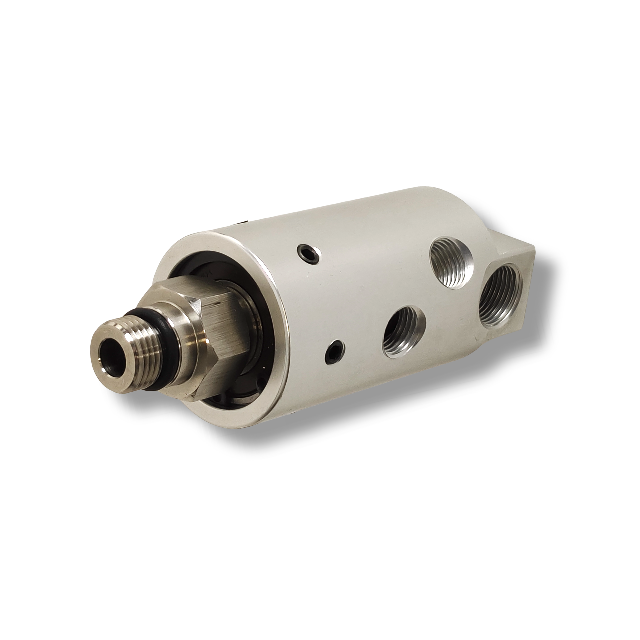

LX Series LX84V 86V Rotary Union for Coolant

A coolant rotary joint for machining centers is a critical component designed to facilitate the seamless transfer of cooling fluids to rotating parts, such as spindles or tool holders, during high-speed machining operations. It ensures efficient cooling and lubrication, enhancing tool life and machining precision. The rotary joint features a robust construction with precision-engineered seals to prevent leaks and withstand high pressures and temperatures. Its compact design allows for easy integration into various machining setups, making it essential for maintaining optimal performance and productivity in CNC machining environments.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • LX84V 86V

  • FUXUAN

Fluid

Fluid Coolant Oil Mist Dry Air
Pressure (MPa) 0.5~7 0.2~1 0.2~1
Pressure (psi) 72.5~1,015 29~145 29~145
Pressure (bar) 5~70 2~10 2~10

Operating Specifications

Specification Flow Rate (Coolant) Max. Speed Max. Temperature
Number Below 20 L/min Max. 15,000 min-1 Max. 60 ℃
Number Below 5.28 gal/min Max. 15,000 rpm Max. 140 °F

Installation Direction

Horizontal Vertical (Rotating Part is Upper Side) Vertical (Rotating Part is Lower Side

✔

✔

✔

Installation Specification

Rotation Without Fluid Min Flow Rate to Operate Seal (In Case Fluid is Coolant)

✔

Over 10 L/min

✔

Over 2.64 gal/min



  • Dry air

  • High-pressure

  • High-speed

  • Double drain structure ( vertical mounting)


捕获33333
