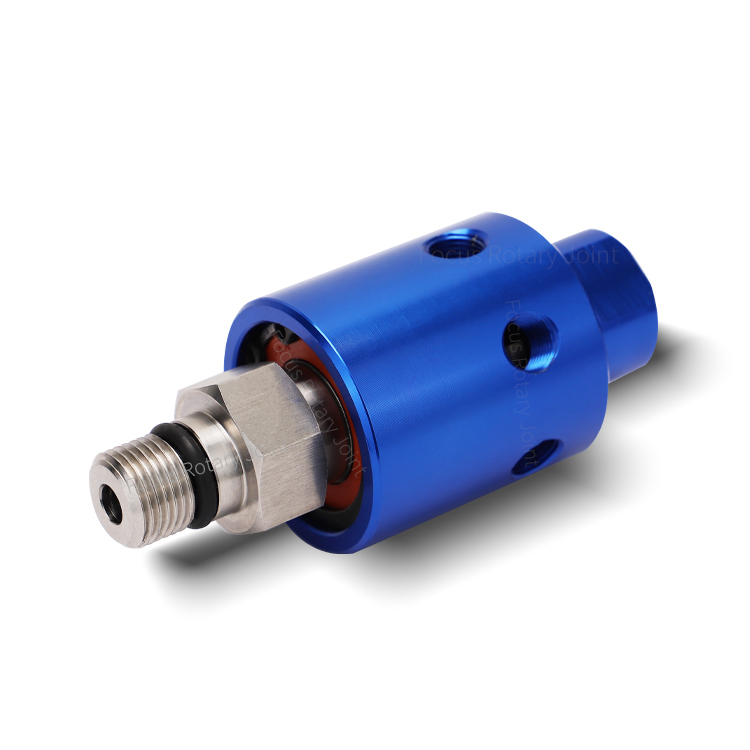

1101 Series 1101-235-259 Rotary Union for Coolant

A coolant rotary joint for machining centers is a critical component designed to facilitate the seamless transfer of cooling fluids to rotating parts, such as spindles or tool holders, during high-speed machining operations. It ensures efficient cooling and lubrication, enhancing tool life and machining precision. The rotary joint features a robust construction with precision-engineered seals to prevent leaks and withstand high pressures and temperatures. Its compact design allows for easy integration into various machining setups, making it essential for maintaining optimal performance and productivity in CNC machining environments.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 1101-235-259

  • FUXUAN

Parameters of coolant rotary joint

MediaCoolant
Rotor ConnectionM16x1.5 LH, 16.025 mm pilot
Housing Connection3/8"-18 NPT
Coolant Max. Flow20.1 l/min
Coolant Max. Pressure103.4 bar
Coolant Max. Temperature71 °C

Features of coolant rotary joint

  • Single passage for coolant or MQL

  • Closed seals for transfer line and similar applications

  • Full-flow design has no obstructions to trap swarf or debris

  • Bearing-supported with threaded rotor for easy installation

  • Deep groove radial ball bearings for smooth operation

  • Labyrinth system and large vents to protect ball bearings

  • Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

  • Anodized aluminum components resist corrosion
