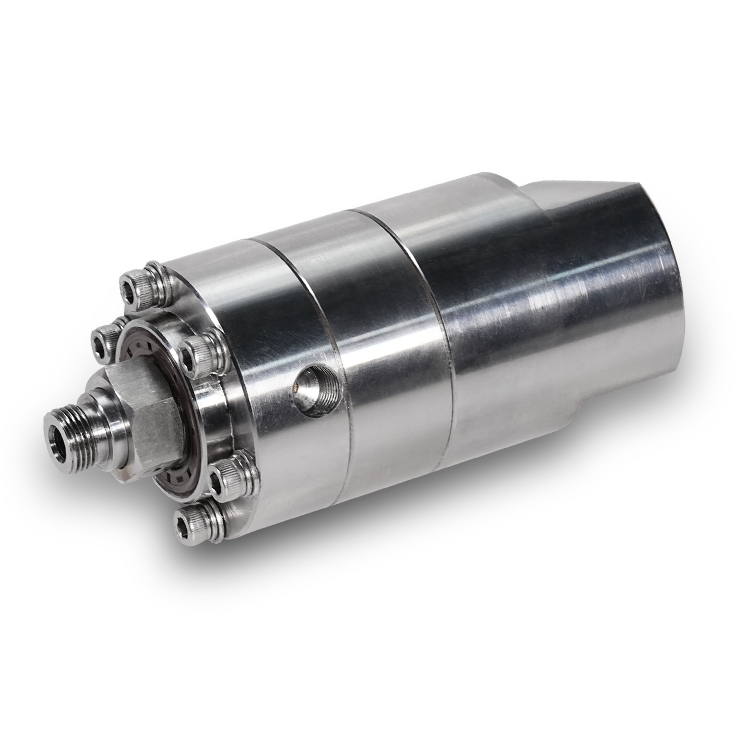

High Speed 200RPM Swivel Union High Pressure 50 MPA Rotary Joints for Car Wash

High-speed high-pressure hydraulic water rotary joint can be equipped with various types of housings and hollow shaft materials, as well as a variety of sealing components to ensure corrosion resistance. Special designs enable the rotary joint to operate under restricted conditions without damaging the friction force. The sealed rolling bearings can be lubricated for a lifetime, and high-speed stainless steel bearings are also an option. The optimized balanced seal has the lowest load and wear, low torque, and enables flexible rotation. Corrosion-resistant seals and accessories can extend the service life.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Multi-Circuit Rotary Joint

High Pressure Rotary Joint for Car Wash parameters:

Product nameHigh pressure rotary joint
Customized supportOEM, ODM
Size

Customized Size

Max.Speed≤5000RPM
Max. Pressure≤450Bar
Max. Temperature≤121℃
Applicable mediumWater, hydraulic oil, coolant, vacuum, compressed gas, etc

Introduction to the High Pressure Rotary Joint for Car Wash

High-pressure high-speed rotary joint series can achieve 360-degree rotation and can transmit various media such as gas, hydraulic oil, hot water, cold water, coolant, etc.


The threaded interfaces of the high-pressure rotary joints are available in various sizes, such as G1/8, G1/4, G3/8, G1/2, G3/4, G1, M16*1.5, M20*15. Options for BSPT, BSP, UNF-NPT threads and flange connections are also provided.


The high-pressure rotary joint is made of corrosion-resistant materials and its special design can prevent damage to the joint under limited conditions. Drawings can be provided according to customer requirements and customized processing can be carried out. It is widely used in acid and alkali resistant, corrosion-resistant, chemical industry, hydraulic systems, high-speed, high-temperature, cleaning equipment, pipe rolls, dust removal water pipes, and car washing machines, etc.
