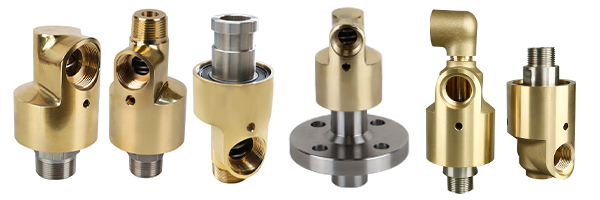

H-type rotary joint is widely used in industrial fluid transmission systems. It is dedicated to achieving 360° unrestricted rotation transmission for a single medium such as water and oil. This product features a compact structure, low friction torque, and stable sealing performance. It is the core connection component for industrial equipment such as cooling circulation, heating rollers, and hydraulic transmission. Through targeted structural and process optimization, the upgraded H-type rotary joint can effectively solve common problems such as sealing leakage, short service life, and high operating resistance, significantly improving equipment operation efficiency and reducing industrial maintenance costs.
Basic Structure and Working Principle of Standard H-Type Rotary Joint
H-type rotary joint has a simple and scientific structural design, with no redundant multi-channel flow passages. Its core components include integral cast housing, precision rotating shaft, plane sealing assembly, automatic compensation spring, high-precision ball bearing and anti-leakage auxiliary ring. All components are tightly matched to form an independent sealed flow channel for single fluid transmission.
In terms of working principle, the static housing is fixed on the pipeline, and the internal rotating shaft operates synchronously with the rotating equipment. Relying on the elastic compensation force of the built-in spring, the plane sealing friction pair is closely fitted. The precision polished sealing surface isolates the internal fluid passage from the external environment, realizing continuous and stable fluid delivery during high-speed or frequent rotation. The double-bearing symmetric support structure ensures the coaxiality of the rotating shaft, avoids rotation jitter, and lays a foundation for long-term stable operation.
Although traditional H-type rotary joints occupy a large market share in medium and low-load industrial scenarios, they have obvious performance bottlenecks in high-speed, high-pressure and long-cycle working conditions, which restrict equipment operation stability:
Insufficient sealing adaptability: Traditional sealing materials are mostly ordinary graphite and rubber, which are prone to wear, aging and deformation when encountering fluid impurities, high temperature or high pressure, resulting in slow leakage and medium loss.
Large rotation friction resistance: The matching precision of traditional bearings and rotating shafts is low, with large friction torque. Long-term operation will cause heat accumulation, accelerate component wear, and affect equipment rotation accuracy.
Poor structural anti-vibration performance: The single spring compensation structure has limited pressure resistance. When the equipment runs with vibration, the sealing surface is poorly fitted, which is easy to cause instantaneous leakage.
Short service cycle: Ordinary casting process leads to low housing rigidity, poor corrosion and wear resistance, frequent replacement of vulnerable parts, and high later maintenance costs.
Aiming at the structural and performance defects of traditional products, we optimize the H-type rotary joint from material selection, structural design, processing technology and sealing system, focusing on improving stability, durability and applicability, and retaining the classic single-passage design to ensure efficient single-medium transmission:
Break through the limitations of traditional ordinary cast iron and ordinary graphite materials. The optimized H-type rotary joint adopts high-strength precision cast iron housing + stainless steel rotating shaft, which improves overall structural rigidity and pressure resistance. The sealing friction pair is upgraded to composite materials such as impregnated graphite, silicon nitride and tungsten carbide. These materials have super wear resistance and high-temperature resistance, can resist erosion and scaling of fluid impurities, and avoid sealing surface damage and leakage failure caused by medium pollution.
On the basis of the original single spring, the optimized product adopts a balanced elastic compensation system with uniform force distribution. The spring group can automatically adjust the compression amount according to the rotation speed, pressure change and sealing surface wear, always keeping the sealing plane in a close fit state. It effectively solves the problem of poor sealing effect caused by equipment vibration, pressure fluctuation and component wear, and realizes zero leakage stability under rated working conditions.
All core matching parts are processed by CNC precision machine tools and polished by special grinding equipment, and the flatness of the sealing surface reaches mirror level. The high-precision double-ball bearing spacing design optimizes the rotation concentricity, greatly reduces the internal friction coefficient, makes the rotation more flexible and stable, reduces operating energy consumption, and avoids heat aging of sealing parts caused by excessive friction.
The optimized H-type rotary joint adopts an integrated molding process for the key connecting parts, cancels redundant gaps, and improves the overall compression and impact resistance. The standardized thread and flange connection structure improves the fitting accuracy with industrial pipelines, avoids loose connection and medium leakage caused by long-term operation, and is compatible with various installation scenarios.
Compared with traditional products, the fully optimized single-passage H-type rotary joint has comprehensive performance upgrades, which can adapt to more stringent industrial working conditions:
Zero stable leakage: The upgraded sealing system and compensation structure ensure long-term zero leakage transmission of water, steam, heat transfer oil and other media, reducing medium waste and environmental pollution.
Low energy consumption and high efficiency: Ultra-low friction torque design reduces equipment rotation resistance, effectively reduces equipment operating power consumption, and improves production efficiency.
Long service life: Wear-resistant and high-temperature resistant materials + precision processing technology extend the service life of vulnerable parts by more than 2 times, reducing replacement frequency and maintenance costs.
Strong working condition adaptability: It can stably operate in the temperature range of -20℃ to 220℃ and pressure range of 1-3MPa, suitable for high-speed rotation, intermittent operation and slightly impurity-containing medium working conditions.
Simple maintenance: The integrated modular structure is convenient for disassembly and assembly, no special tools are required for daily maintenance, and the later operation cost is low.
Relying on the advantages of single-channel specialization, stable performance and wide adaptability, the optimized H-type rotary joint is widely used in various industrial fields that require single-medium rotating fluid transmission, covering machinery manufacturing, printing and dyeing textile, papermaking, plastic rubber, metallurgy and chemical industry:
Industrial cooling system: Cooling roller, cooling mold, mechanical equipment circulating water cooling pipeline rotation connection
Heating and thermal system: Steam heating roller, heat transfer oil heating equipment, constant temperature industrial roller heating transmission
Light industrial processing equipment: Printing and dyeing drying roller, papermaking calender, plastic calendaring machine rotating pipeline connection
Hydraulic and pneumatic system: Single-path hydraulic oil and compressed air rotating transmission of medium and low-pressure industrial equipment
The optimized single-passage H-type rotary joint abandons the redundant multi-channel design, focuses on the performance optimization of single-medium rotating transmission, and solves the core pain points of traditional products such as easy leakage, large friction and short service life through material upgrading, structural optimization and process improvement. It has the characteristics of high stability, low energy consumption, strong durability and convenient maintenance. As a cost-effective industrial rotary connection component, it can effectively improve the overall operating stability of industrial equipment, reduce enterprise production and maintenance costs, and is the preferred upgrade product for medium and low-load fluid rotating transmission systems in various industries.
