Multi-Circuit Rotary Joints for Complex Industrial Automation

Modern automated machinery often needs to transmit multiple different media simultaneously while rotating. Ordinary single‑passage rotary unions can no longer satisfy complex working conditions. Multi‑passage rotary unions integrate several independent flow channels inside one unit, enabling simultaneous transmission of hydraulic oil, compressed air, cooling water, steam or other fluids between stationary and rotating parts. Without line twisting and winding, they greatly improve equipment stability for multi‑channel automation systems.

What is Multi‑Passage Rotary Unions

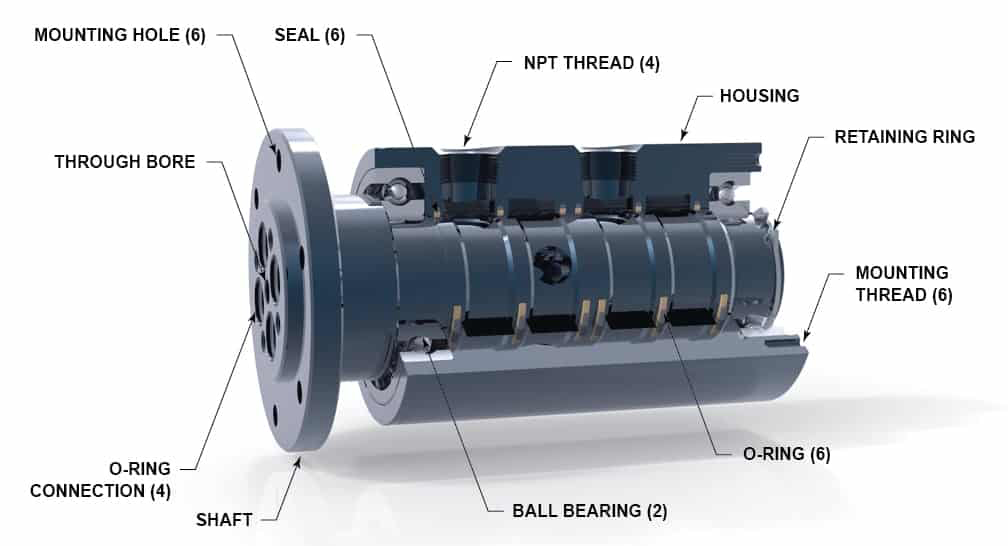

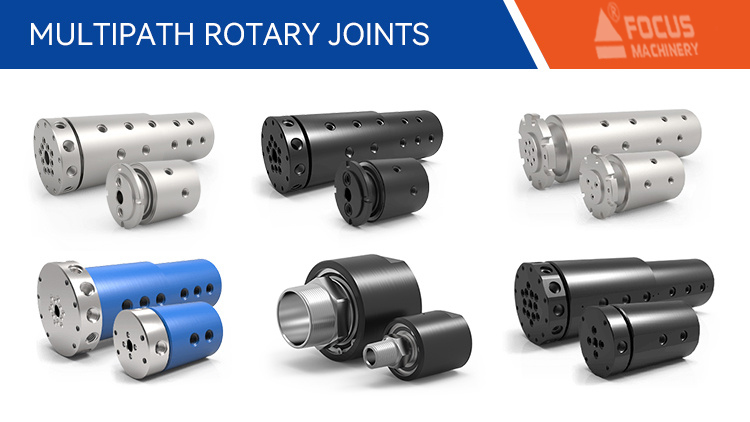

Multi‑passage rotary unions (multi‑channel rotary joints) are precision rotary connection components with multiple mutually isolated internal passages. Each channel works independently without medium cross‑leakage. Channels can be designed for different pressure, speed and temperature parameters. Medium types can be mixed: hydraulic oil for power drive, compressed air for clamping, cooling water for temperature control. Compared with installing multiple single‑passage rotary unions, one multi‑passage unit saves installation space, reduces assembly complexity and lowers failure points.

Core Advantages

• Multiple independent isolated channels: No cross‑medium leakage, support mixed transmission of gas, liquid and oil.

• Compact integrated structure: Reduce overall equipment size, simplify piping layout.

• Customizable channel quantity and specification: 2‑12 channels optional; thread/flange connection available; support custom passage size for different flow requirements.

• High‑performance sealing system: Adopt high‑wear‑resistant sealing pairs, adapt high‑pressure, high‑speed and continuous‑operation scenarios, long service life.

• Good import‑substitution performance: Comparable performance to mainstream international brands, with obvious cost‑performance advantages, shorten delivery cycle for global customers.


  Main Application Scenarios

• Rotary indexing tables, multi‑station automation fixtures

• Metallurgical continuous casting equipment

• Rubber & plastic internal mixers

• Wind power pitch control systems

• Machine tool rotary worktables

• Packaging machinery, textile machinery

• Hydraulic/pneumatic rotary actuators

Different equipment needs different channel combinations: for example, internal mixers need multi‑passage joints for cooling water and hydraulic oil; rotary worktables need simultaneous air circuit and hydraulic circuit transmission.

Selection Tips for Multi‑Passage Rotary Unions

1. Confirm channel quantity: How many kinds of media need to be transmitted at the same time.

2. Working parameters: Working pressure, rotating speed, medium temperature.

3. Medium type: Water, air, hydraulic oil, steam etc, which determines sealing material.

4. Connection form: Thread connection or flange connection, installation dimension limit.

5. Rotation mode: Continuous rotation or intermittent swing rotation.

Improper selection will cause leakage, heating or short service life. Provide your working condition parameters, we can offer targeted multi‑passage rotary union solution.

Multi‑passage rotary unions solve the core pain point of multi‑medium transmission under rotating conditions. Compact structure, reliable sealing and flexible customization make them core components for automation and heavy‑duty industry. As a cost‑effective import‑substitute solution, multi‑channel rotary joints help global users reduce equipment maintenance costs and improve production continuity.
