High Pressure Rotary Joint parameters:
| Product name | High pressure rotary joint |
| Customized support | OEM, ODM |
| Size | Customized Size |
| Max.Speed | ≤5000RPM |
| Max. Pressure | ≤450Bar |
| Max. Temperature | ≤121℃ |
| Applicable medium | Water, hydraulic oil, coolant, vacuum, compressed gas, etc |

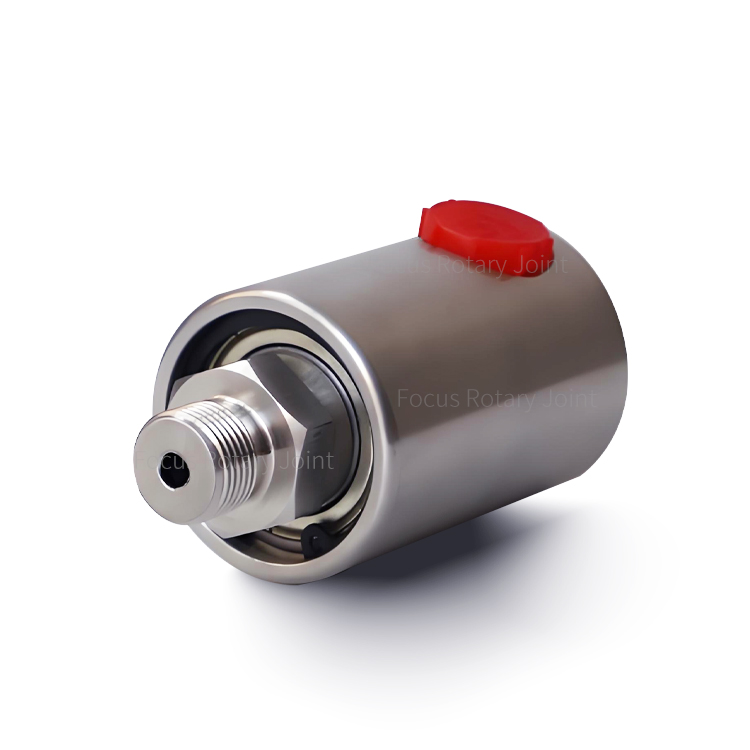

Introduction to the High Pressure Rotary Joint
High pressure and high speed rotary joint series can be rotated 360 degrees, can transmit gas, hydraulic oil, hot water, cold water, coolant and other media.
The high pressure rotary joint thread interface is available in various metric thread sizes such as G1/8, G1/4, G3/8, G1/2, G3/4,G1, M16*1.5,M20*15
The high-pressure rotary joint is characterized by corrosion-resistant materials and a special design that does not damage the joint under limited conditions.
Customized rotary joints for special requirements such as high speed and high pressure.
