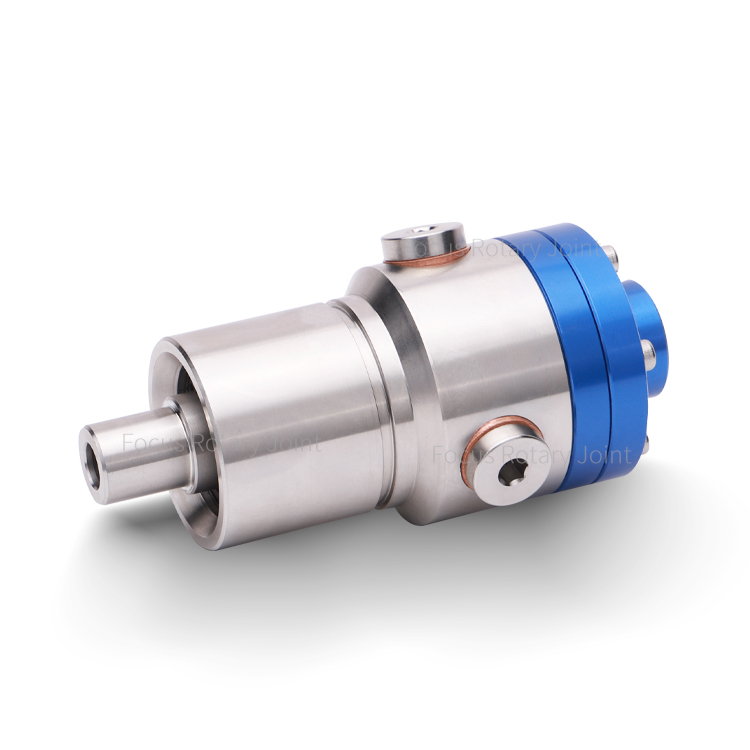

1114 Series 1114-710-717 Rotary Union for Coolant

A coolant rotary joint for machining centers is a critical component designed to facilitate the seamless transfer of cooling fluids to rotating parts, such as spindles or tool holders, during high-speed machining operations. It ensures efficient cooling and lubrication, enhancing tool life and machining precision. The rotary joint features a robust construction with precision-engineered seals to prevent leaks and withstand high pressures and temperatures. Its compact design allows for easy integration into various machining setups, making it essential for maintaining optimal performance and productivity in CNC machining environments.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 1114-710-717

  • FUXUAN

Parameters of coolant rotary joint

ParameterValue/Specification
MediaMQL, Coolant, Air
Rotor ConnectionFemale Hex, 10.984 mm pilot
Housing ConnectionG 3/8"-19
Air Max. Flow938 l/min
Air Max. Pressure10 bar
Air Max. Temperature71 °C
Coolant Max. Flow82 l/min
Coolant Max. Pressure140 bar
Coolant Max. Temperature71 °C
MQL Max. Flow938 l/min
MQL Max. Pressure10 bar
MQL Max. Temperature71 °C

Features of coolant rotary joint

  • Single passage for both coolant and dry air

  • Patented AutoSense™ technology changes automatically between closed seals and controlled leakage operation in response to the kind of media

  • Bore-mounted design for easy installation

  • Allows axial drawbar movement up to 19 mm

  • Matched, ISO class P4 hybrid ball bearings for smooth operation at high speeds

  • Labyrinth system and large vents to protect ball bearings

  • Full-flow design has no obstructions to trap swarf or debris

  • Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

  • Anodized aluminum and stainless steel parts resist corrosion
