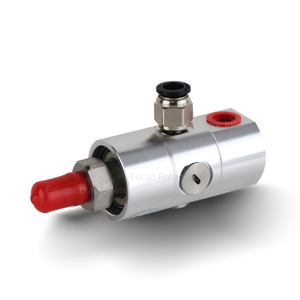

GU2000v AU2000
FUXUAN
Parameters of coolant rotary joint:
| Parameter | Value |
|---|---|
| Operating Data | |
| M16XP1.5 LH MAX. RPM | 20000 |
| M12XP1.25 LH MAX. RPM | 18000 |
| M10XP1.0 RH MAX. RPM | 16000 |
| MAX. PRESSURE | 100 bar |
| MAX. TEMPERATURE | 110°C |
| DRY RUN | |
| FILTRATION | 20 µm |
| Seal Closing Requirement | |
| MIN. PRESSURE | 2 bar |
| MIN. FLOW RATE | 8 L/mi |
Features of coolant rotary joints:
1. High quality rotary joints and 2 precision bearings are installed on a highly rigid rotating shaft to ensure vibration-free operation over a long period of time.
2. The shaft is specially heat treated to increase rigidity.
3. The fixing ring closure is made of a special material, wear resistant carbon graphite, impervious to water and dry running.
4. In particular, the size of the rotating sealing surface must be reduced to a minimum, even at high pressures.
5. Long mechanical experience with SM has resulted in a good balance of the closed face section.
6. The bronze fixing ring used in this swivel joint is intended for use at high pressures up to 200 bar. Application areas: general tooling, workstations, computer numerical control, rotary distributors, etc.
