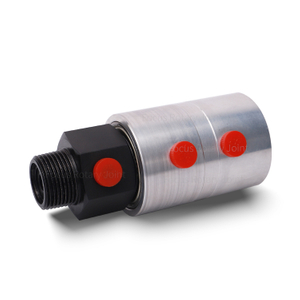

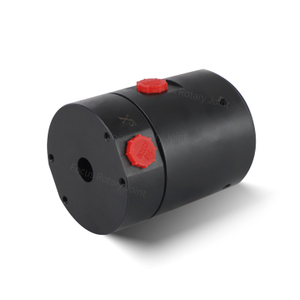

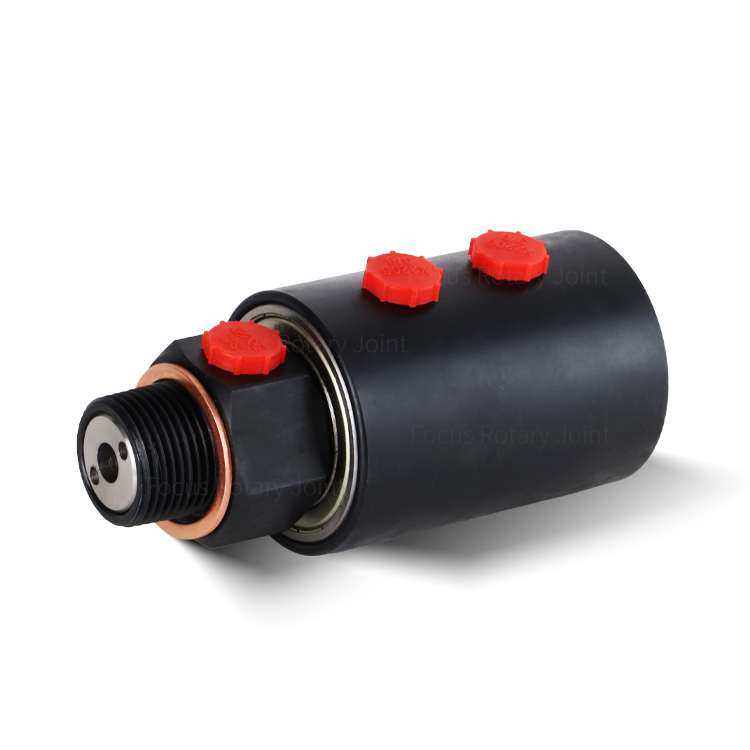

2 Channel Rotary Joint for Winding Machines

Dual-Channel Hydraulic Rotary Union is designed for coiling, uncoiling, and slitting machinery, enabling seamless hydraulic fluid transfer between stationary pumps and rotating cylinders. It features two independent flow paths (pressure & return) to ensure efficient oil supply without hose tangling during high-speed operation.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Double Channel Swivel Joints Parameters:

Product NameDouble Channel Rotary Unions
SizeCustomized Size
Max. Pressure3050 PSI
Max.Speed250RPM

Introduction to the Double channel swivel Joints：

✔ Dual Independent Flow Channels – Simultaneous pressure (inlet) and return (outlet) flow for optimized hydraulic performance.

✔ High Pressure & Speed Resistance – Robust construction supports up to 350 bar and 500 RPM (higher speeds available upon request).

✔ Leak-Free Sealing System – Multi-stage sealing (mechanical seals + O-rings) prevents fluid leakage and contamination.

✔ Low-Friction & Long Service Life – Precision bearings + wear-resistant materials (e.g., PTFE, carbide) minimize maintenance needs.

✔ Flexible Installation Options – Flange (SAE/ISO) or threaded connections for easy integration.
