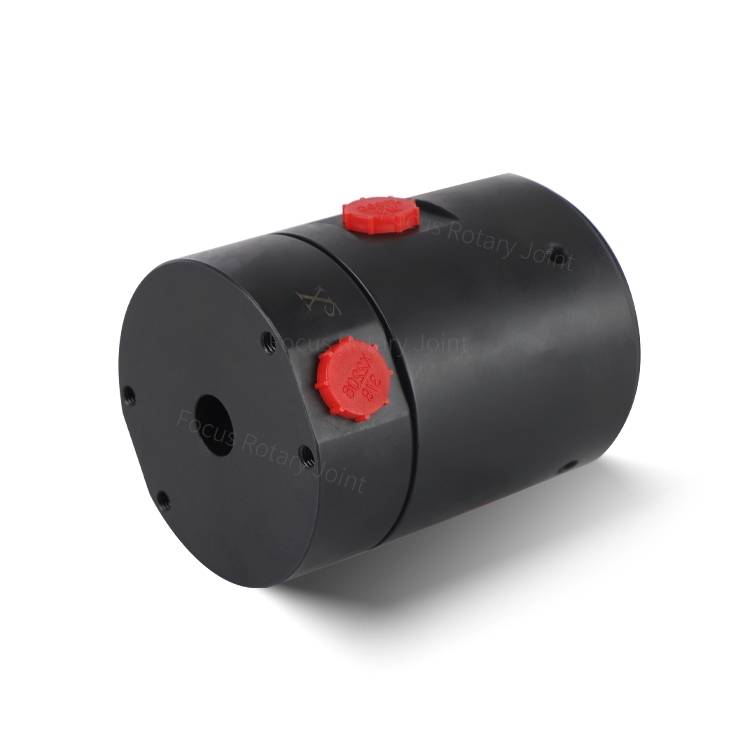

Multi-passage Hydraulic Rotary Union
FUXUAN
Parameters of multi-passage rotary joint:
| High Pressure | High Pressure&High Speed | |
| Passage | 1-24 Customizable | 1-24 Customizable |
| Interface size | G1/8'' - G2'' | G1/8'' - G2'' |
| Pressure | 0-500bar | 0-350bar |
| Speed | 0-300RPM | 0-4500RPM |
Features of multi-passage rotary joint:
The JDGAPS series multi-channel rotation joints have standard specifications such as 2, 4, 6, 8, 12, 16, and 24 channels. These rotating joints are designed for applications with limited space and can handle a wide range of pressures. They feature special seals suitable for two-way pressure up to 7,500 PSI (500 kg) and independent runways that can transmit different types of media simultaneously. All JD series models are marked with a thread connection on both sides of the shell. The models can also be provided with an optional axis O-sealing ring, which is installed on the surface/Oiping (must be specified at the time of order).
Note:
The following special requirements can be customized, the delivery period will increase 3-15 days, and the cost will increase by 5% to 50%. Most of the basic accessories of the company are standardized and modular.
Cost and intersection.
1. Joint size
2. Pressure
3. Speed high
4. The size of the hollow inner hole
5. Corrosive media, all stainless steel, explosion -proof, high temperature
6. Can combine with electric slip ring
