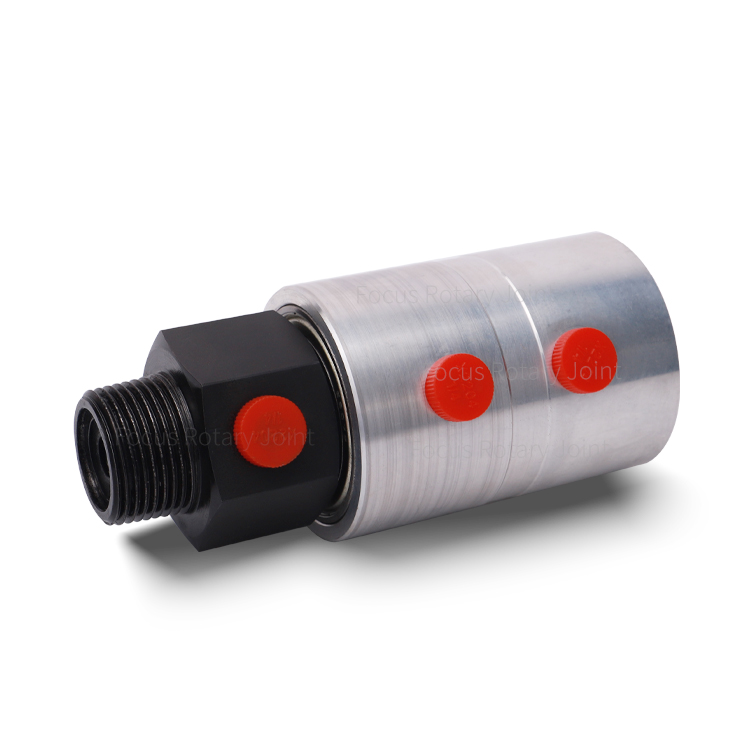

Double Channel Hydraulic Swivel Joints

dual channel hydraulic rotary joint is designed for coiler, uncoiler, scutcher and other equipment to transfer high pressure hydraulic oil between the rotary cylinder and the fixed hydraulic system. The joint adopts the double channel structure, which can realize the oil intake and oil return of hydraulic oil at the same time, so as to ensure that the oil supply can be stable when the equipment is rotating at high speed and avoid the problem of pipe winding.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Double Channel Hydraulic Swivel Joints Parameters:

Product nameDouble Channel Hydraulic
SizeCustomized Size
Max. Pressure3050 PSI
Max.Speed250RPM

Introduction to the Double Channel Hydraulic Swivel Joints：

Dual Independent Flow Channels – Simultaneous pressure (inlet) and return (outlet) flow for optimized hydraulic performance.

✔ High Pressure & Speed Resistance – Robust construction supports up to 350 bar and 500 RPM (higher speeds available upon request).

✔ Leak-Free Sealing System – Multi-stage sealing (mechanical seals + O-rings) prevents fluid leakage and contamination.

✔ Low-Friction & Long Service Life – Precision bearings + wear-resistant materials (e.g., PTFE, carbide) minimize maintenance needs.

✔ Flexible Installation Options – Flange (SAE/ISO) or threaded connections for easy integration
