High Speed
FUXUAN

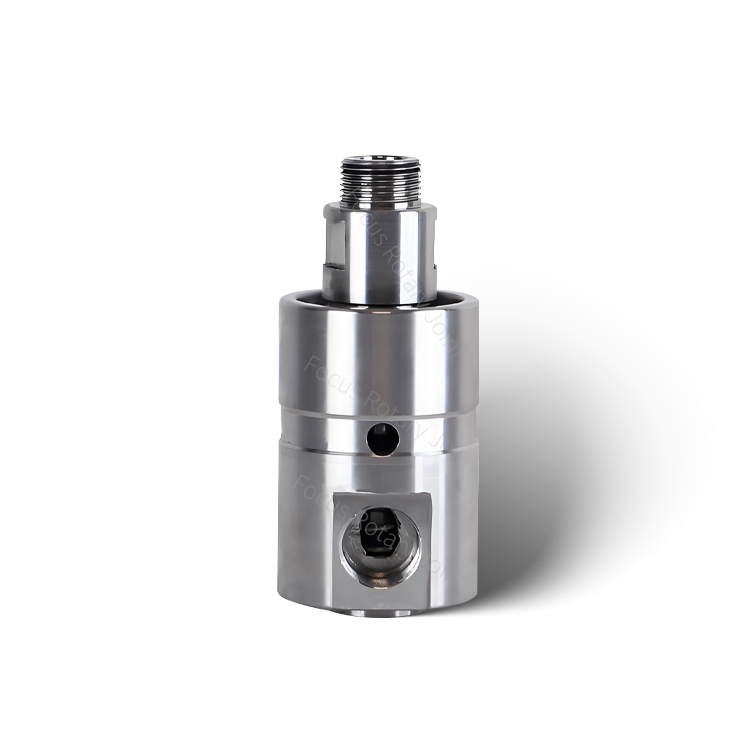

Parameters of High Speed S Series Rotary Joint
| Medium | Pressure | Temperature | Speed |
| Acqua – Water – Wasser – Agua | ¼” ÷ 1½” – 50 bar / 725 PSI 2″ – 40 bar / 580 PSI | 95°C / 203°F | ¼” ÷ ¾” – 3.500 1″ – 3.000 ¼” ÷ 1½” – 2.500 2″ – 750 |
Features of High Speed S Series Rotary Joint
These unions are available with two different balanced and microlapped sealing assemblies:
N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated water or abrasive fluids.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C).
Parameters of High Speed S Series Rotary Joint
| Medium | Pressure | Temperature | Speed |
| Acqua – Water – Wasser – Agua | ¼” ÷ 1½” – 50 bar / 725 PSI 2″ – 40 bar / 580 PSI | 95°C / 203°F | ¼” ÷ ¾” – 3.500 1″ – 3.000 ¼” ÷ 1½” – 2.500 2″ – 750 |
Features of High Speed S Series Rotary Joint
These unions are available with two different balanced and microlapped sealing assemblies:
N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated water or abrasive fluids.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C).
