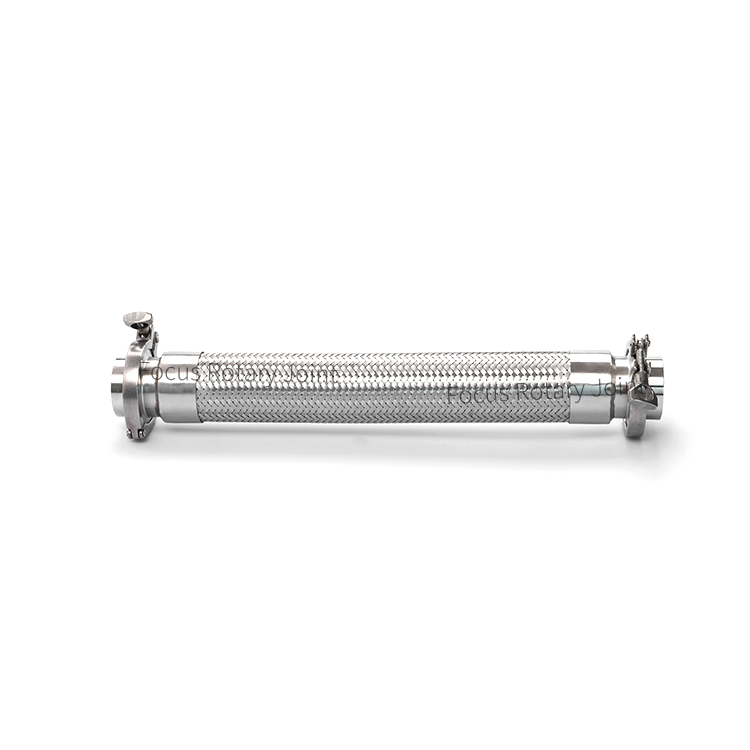

Clamp Type Quick Connector Metal Hose

A metal hose is a flexible, corrugated tubing made from stainless steel or other metals, designed to withstand high pressure, extreme temperatures, and corrosive environments.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Metal Hose

  • FUXUAN

Metal Hose Specifications

CategoryDetails
Nominal Diameter (DN)DN15 – DN2000 mm
Product Length200 mm – 2000 mm
Nominal Pressure2.5 KG, 6 KG, 10 KG, 16 KG, 25 KG, etc.
Operating Temperature-196°C to 450°C
Compatible MediaLiquids, gases, etc.
Connection TypesFlange, threaded (screw), quick-connect, movable internal thread, jacketed metal hose.
• Small diameters: Threaded/quick-connect.
• Large diameters: Flange.

Structure & Materials

ComponentMaterial Options
Corrugated TubeStainless steel 304, 316L, 321
Braided MeshStainless steel 201, 202, 304, 321, 316L
FlangeCarbon steel, stainless steel
LinerPolytetrafluoroethylene (PTFE)

Key Notes:

  • Flexibility & Durability: Suitable for extreme temperatures (-196°C to 450°C) and high-pressure applications.

  • Material Choices: 316L/321 for corrosive environments; PTFE liner for chemical resistance.

  • Connections: Flanges dominate large industrial systems; threaded/quick-connect for smaller hoses.
