HD-6/HD100
FUXUAN
Place of Origin | Shandong, China |
Customized support | OEM, ODM |
Brand Name | Shandong Focus Machinery Co., Ltd |
Model Number | HD-6-----HD100 |
Model | water rotary joint |
Size | 1/8"~2" |
Max.Speed | ≤1000r/min |
Max. Pressure | ≤0.1mpa |
Max. Temperature | ≤100℃ |
Suitable medium | Water, air, hydraulic oil, salt water, etc |

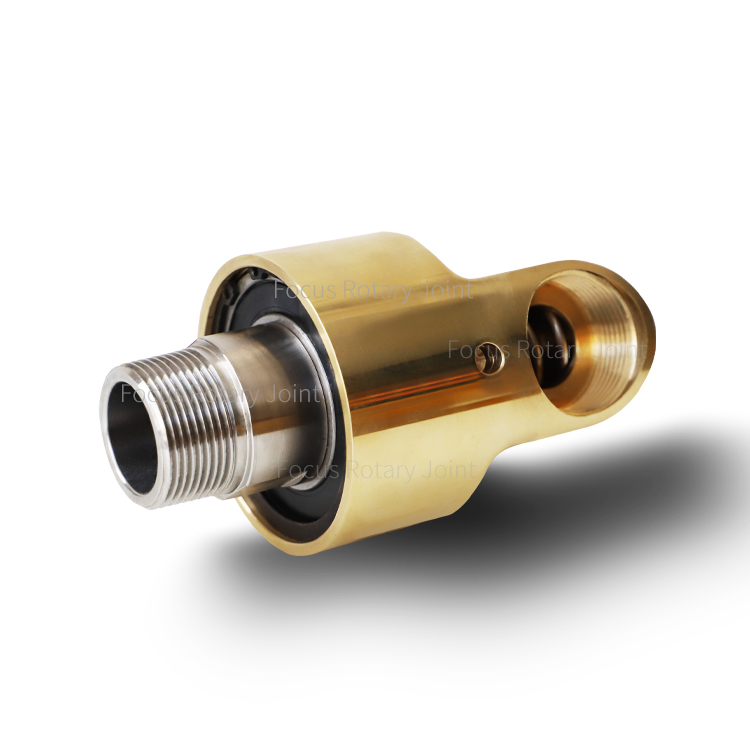

These joints have a rotating shaft with threads on one end that connect to a continuously revolving drum, roller, or other rotating equipment. Use them to transfer hot and cold materials from your supply line. Joints are for one-way flow and are meant to be used in pairs—one joint serves as the supply line while the other serves as the return line. Joints are brass for good corrosion resistance. For steam applications use intermittently (up to 20% of operating time).
