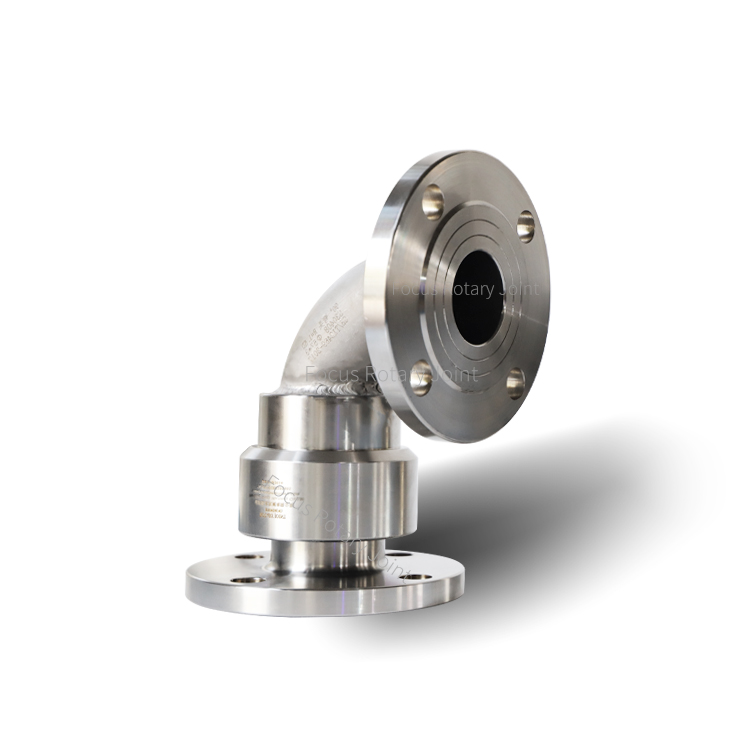

90 Degree Special Shaped High Pressure Rotary Joint

DN type rotary joint is specially used for the active connection between the fluid medium of the steel pipe to play a reciprocating or low-speed rotating movement, with high wear resistance, flexible rotation, strong support capacity, the sealing of imported seals, with reliable sealing performance, to ensure that there is no "running, rising, dripping, leakage" phenomenon.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

High Pressure Rotary Joint parameters:

Product nameswivel joint
SizeCustomized Size
Max.Speed≤300RPM
Max. Pressure≤35MPA
Max. Temperature≤250℃
Applicable mediumHydraulic oil, water, gas

 Introduction to the High Pressure Rotary Joint

   DN series rotary joint is a kind of movable joint used for steel pipe before swing or low-speed continuous rotation. Its interior is supported by two rows of wide deep groove ball bearings, smooth rotation, strong support force, and long service life of special seals

-- Double rows of wide deep groove ball bearings

-- Smooth operation without swing

-- The bearing inside is pre-filled with bearing grease

-- Special seals

-- With a variety of movable joint combination styles, it can meet the complex space rotation transmission medium under field conditions
