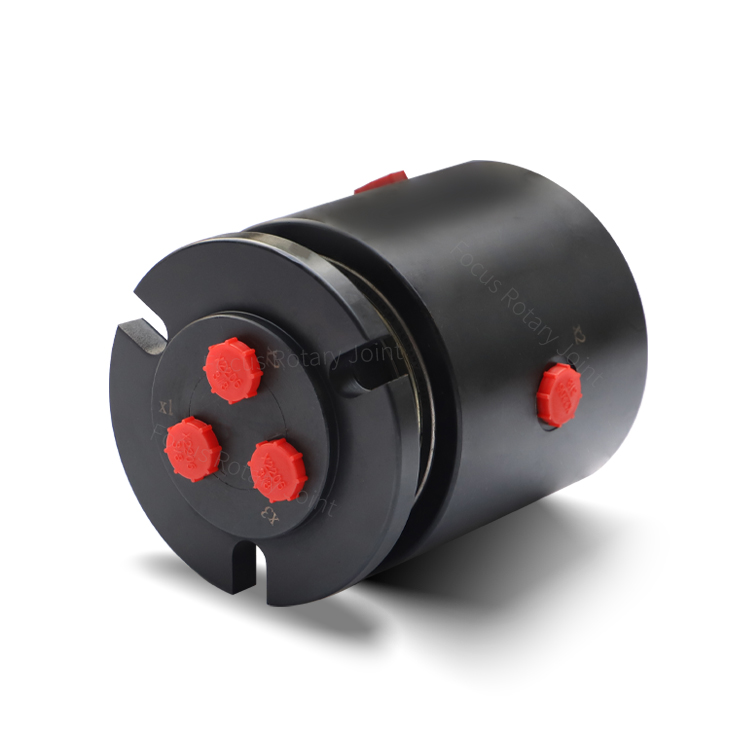

3 Passages Multi-Passages Rotating Joint

   multi-channel rotary joint is a mechanical device used to connect fixed pipeline systems and rotating equipment (such as pumps, mixers, fans, etc.), which allows fluid to be continuously transmitted between rotating and stationary parts without leakage. This type of joint is commonly used in chemical, petroleum, pharmaceutical, food processing, and other industrial fields, where the medium (such as water, oil, steam, chemicals, etc.) needs to be transported to specific parts of rotating equipment.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • multi-channel rotary joint

Multiport Rotating Unions parameters:


High pressureHigh pressure high speed
passage1-24    Customized Size1-24    Customized Size
Interface sizeG1/8"---G 2"G1/8"---G 2"
pressure0---500 bar0---350 bar
speed0---300 RPM0---4500 RPM

Introduction to the Multiport Rotating Unions：

1.Multi-channel Design：It can transmit multiple different media simultaneously, with each channel independently sealed and not interfering with each other.

2.Sealing performance：Use high-performance sealing components,wear-resistant materials to , ensure that no leakage occurs during high-speed rotation
3.Bearing system：Internally, it contains a precision bearing system to support rotating components and reduce friction, ensuring smooth rotation of joints.
4.Material selection：According to different working environments and media characteristics, the multi-channel rotary joint can be made of different materials such as stainless steel, carbon steel, copper, aluminum alloy, etc.
5.interface type：The import and export of connectors can be customized according to needs. Common types of interfaces include flange connection, threaded connection, quick connector, etc

6.Temperature and pressure range：The multi-channel rotary joint can operate within a certain temperature and pressure range, and the specific parameters depend on the design and materials used.
