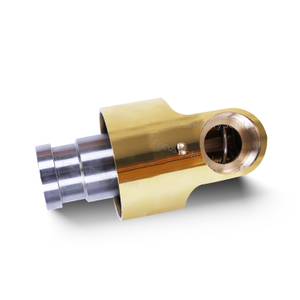

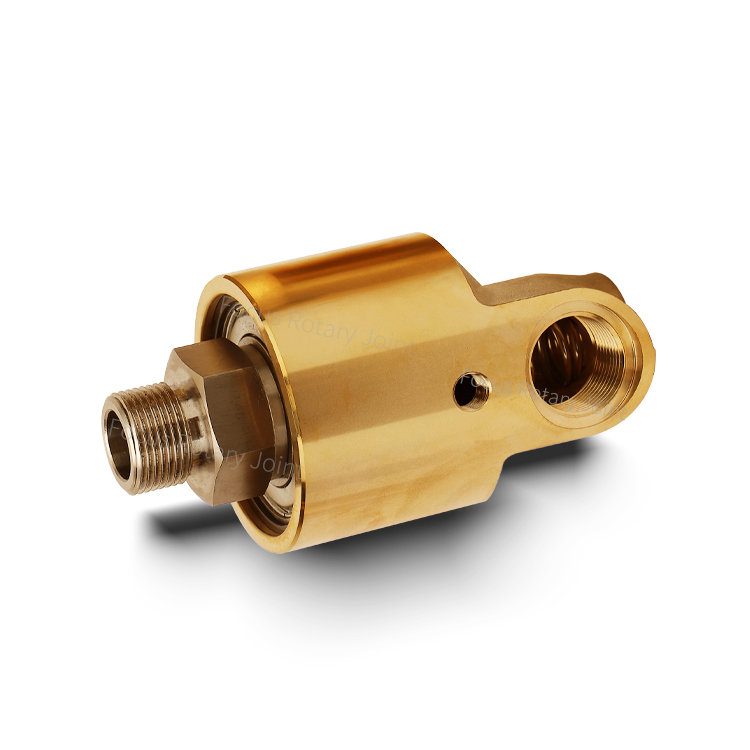

155 157 Series Rotary Joint for Water

The 55/57 Series Rotary Joints are designed for the transfer of water or other compatible fluids in rotating systems. These joints are commonly used in applications such as cooling systems, hydraulic systems, and machinery where continuous rotation is required while maintaining a sealed fluid connection.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 55 57 Series

  • FUXUAN

Parameters of 155 157 Series Rotary Joint

MediaWater, Steam, Hot Oil
Rotor ConnectionG 3/8"-19 RH
Housing Connection3/8"-18 NPT
Hot Oil Max. Flow12.5 l/min
Hot Oil Max. Pressure6.9 bar
Hot Oil Max. Temperature121 °C
Steam Max. Flow51.9 l/min
Steam Max. Pressure1 bar
Steam Max. Temperature121 °C
Water Max. Flow12.5 l/min
Water Max. Pressure51.7 bar
Water Max. Temperature121 °C

Features of 155 157 Series Rotary Joint

  • Monoflow and duoflow design

  • Self-supported rotating union

  • Radial housing connection

  • Balanced mechanical seals

  • Keyed rotor seal

  • Easy and quick replacement of sealing components

  • Ball bearings lubricated for life

  • E.L.S. (Extended Life Service) seal combination for poor water quality

  • 3 vent holes

  • Forged brass housing and stainless steel rotor

  • Special options include threaded vent holes
