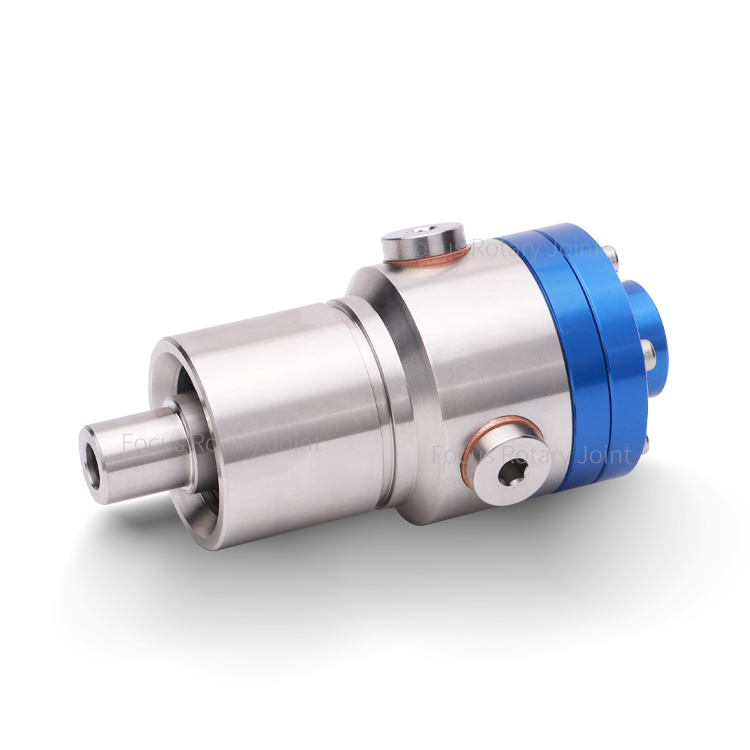

1114 Series Coolant Rotary Union 1114-710-717 Rotating Joint

High-speed coolant rotary joint for machining centers designed to facilitate the seamless transfer of cooling fluids to rotating parts, such as spindles or tool holders, during high-speed machining operations. It ensures efficient cooling and lubrication, enhancing tool life and machining precision. The rotary joint features a robust construction with precision-engineered seals to prevent leaks and withstand high pressures and temperatures. Its compact design allows for easy integration into various machining setups, making it essential for maintaining optimal performance and productivity in CNC machining environments.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Coolant Rotary Joints Parameters:

Modelcoolant rotary joint
Customized supportOEM, ODM
Max.Speed6000-15000rpm
Max. Pressure70-100bar
Max. Temperature-30~+95°c
Suitable mediumHydraulic oil, water, coolant

Features of Coolant Rotary Unions：

          Single passage for both coolant and dry air

          Bore-mounted design for easy installation

          Allows axial drawbar movement up to 19 mm

          Matched, ISO class P4 hybrid ball bearings for smooth operation at high speeds

          Labyrinth system and large vents to protect ball bearings

          Full-flow design has no obstructions to trap swarf or debris

          Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

           Anodized aluminum and stainless steel parts resist corrosion
