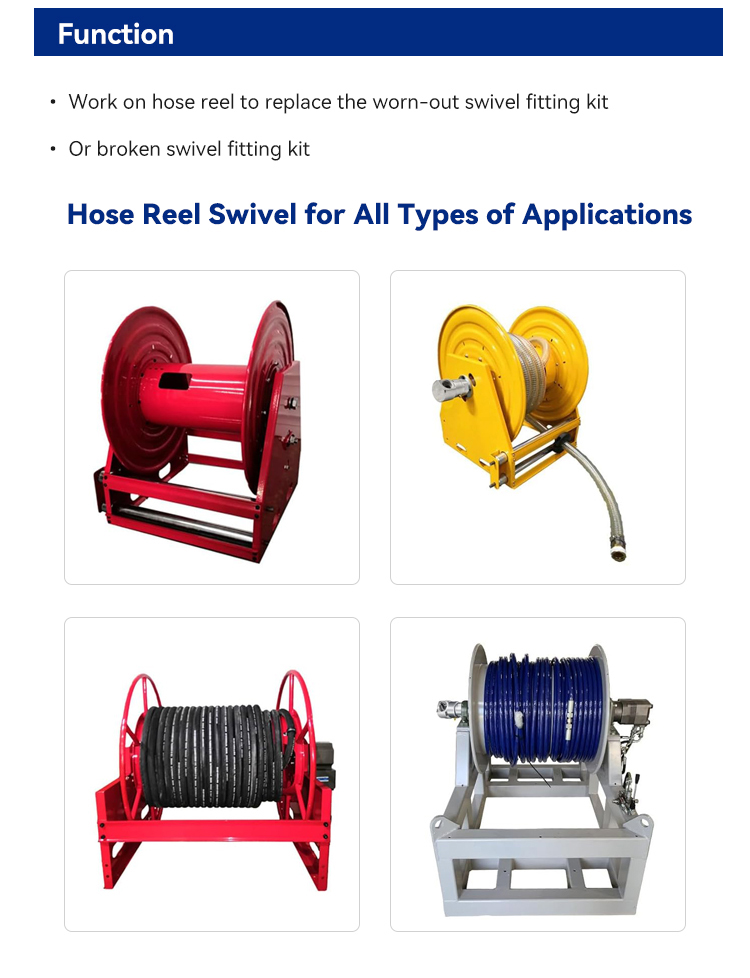

The swivel joint is the core component of a hose reel. It allows fluid water air oil etc to be transferred from a stationary piping system to the rotating reel without leakage during hose winding and unwinding. Improper selection can cause leakage pressure drop short service life or even safety hazards.
Before selecting a swivel joint confirm the following 5 key parameters
Parameter | Description | Common range or Notes |
|---|---|---|
1 Medium | Type of fluid | Air water hydraulic oil steam coolant chemicals etc Material and seals depend on the medium |
2 Pressure | Maximum working pressure | Units bar PSI MPa Typical 12 bar air 207 bar 3000 PSI 350 bar 700 bar Always leave a safety margin |
3 Temperature | Medium temperature range | Units °C °F Typical -20°C to +90°C high temp up to 204°C Seal material determines temperature limit |
4 Bore size and port thread | Internal passage diameter and thread type | Bore size inch DN Threads NPT BSP metric Must match the hose and piping |
5 Configuration | Swivel joint shape | Inline most common 90° elbow for compact spaces Multi passage for multiple media simultaneously |
Additional considerations Rotating speed rpm working environment dusty humid or corrosive anti static requirement etc
Brand | Country | Key strength | Typical pressure range |
|---|---|---|---|
DEUBLIN | USA | Industry benchmark handles multiple media steam high speed | Wide range |
Hannay Reels | USA | Designed for own reels good compatibility | 207 to 690 bar |
OPW | USA | Customized solutions for hazardous fluids fuel chemicals | Customized |
PREVOST | France | Pneumatic products compact and durable | 12 bar |
Mosmatic | Switzerland | High pressure washing long service life | 207 bar |
Elaflex | Germany | Excellent sealing for chemicals and fuels | Model dependent |
Shandong Focus Machinery FUXUAN FOCUS | China | High cost performance strong customization full product range | Up to 690 bar |
Shandong Focus Machinery Co Ltd
Brands FUXUAN and FOCUS

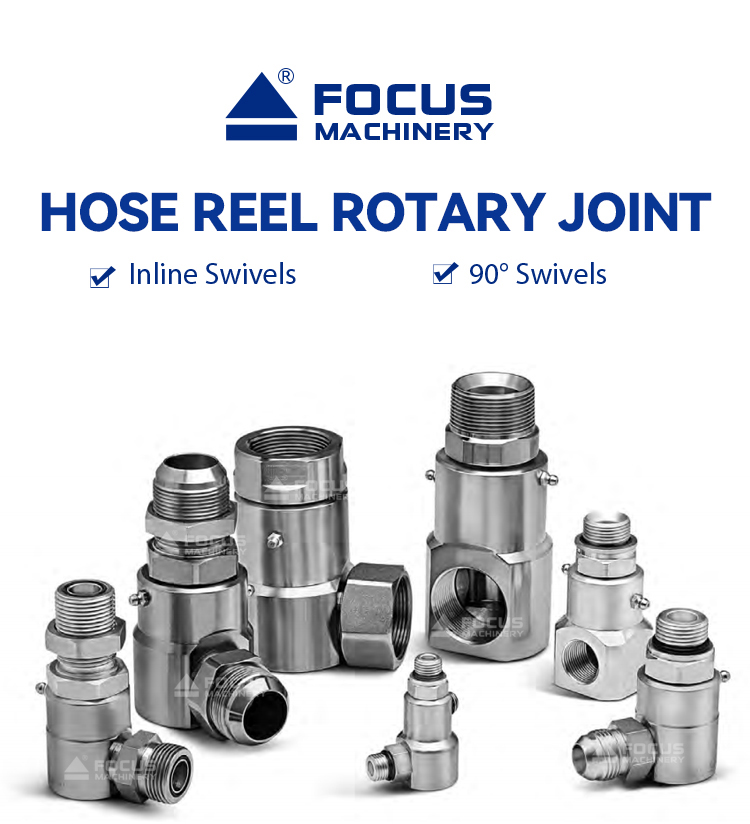

A professional manufacturer integrating R&D production and sales. The product line clearly includes Hose Reel Rotary Joint inline and 90° swivels.
Item | Details |
|---|---|
Company name | Shandong Focus Machinery Co Ltd |
Contact person | Annie Ben <Sales Director> |
WeChat and Phone | 0086 138 6949 6275 also WhatsApp and Facebook |
Website | |
Alibaba | |
Made in China | |
Address | No 988 Xingteng East Road Shannan Street Zaozhuang Shandong China |
Product type | Typical parameters | Suitable media |
|---|---|---|
90° swivel for hose reel | 1/2 inch NPT or BSP thread | Water air |
General high pressure swivel | Pressure up to 15 MPa about 2175 PSI speed up to 300 RPM | Water air oxygen hydrogen |
High speed swivel | Pressure up to 80 bar speed up to 12000 RPM | Water coolant hydraulic oil |
Multi passage swivel | Pressure up to 50 MPa temperature up to 220°C | Water air hydraulic oil |
High temp thermal oil swivel | Temperature up to 350°C | Thermal oil |
Fully customizable | Pressure up to 690 bar speed up to 20000 RPM materials steel 304 stainless steel carbon steel brass aluminum alloy | Water steam thermal oil coolant hydraulic oil chemicals |
1 Product line perfectly matches your need explicitly produces Hose Reel Swivel with inline and 90° options
2 Strong customization and OEM capability can replace imported joints non standard sizes and seal materials available
3 Certified quality SGS BV certified
4 Easy communication and fast response English and Chinese support direct contact with Sales Director via WeChat and WhatsApp
5 High cost performance competitive pricing compared to pure imports
Prepare the following information before contacting a supplier to help them recommend the right model quickly
Medium ____________________
Maximum working pressure ____________________ bar or PSI
Medium temperature ____________________ °C
Port size and thread type ____________________ example 1/2 inch NPT
Configuration Inline or 90°
Special requirements corrosion resistance anti static high speed etc ____________________
First contact Annie Ben Sales Director of Shandong Focus Machinery
WeChat and Phone 0086 138 6949 6275
Email annie@focusesmachinery.com
Briefly describe your application and provide the parameters above. She will recommend suitable models and provide a quotation.
For critical applications order one or two samples for actual working condition testing.
Ask about seal material and expected service life. Also check if repair kits are available to reduce future maintenance costs.
Selection core parameters Medium pressure temperature bore size configuration
Brand choice For extreme or harsh conditions consider established international brands for general use high customization and excellent cost performance Shandong Focus Machinery is strongly recommended
Contact ready Reach out directly to Annie Ben for professional selection support
If you provide your specific operating parameters medium pressure temperature port size we can help narrow down the exact model for you. Good luck with your selection
