Parameters of H type water rotary joint
Place of Origin | Shandong, China |
| Customized support | OEM, ODM |
| Brand Name | Shandong Focus Machinery Co., Ltd |
| Model | water rotary joint |
| Size | 1/8"~2" |
| Max.Speed | ≤1000r/min |
| Max. Pressure | ≤0.1mpa |
| Max. Temperature | ≤100℃ |
| Suitable medium | Water, air, hydraulic oil, salt water, etc |
Features of H type water rotary joint

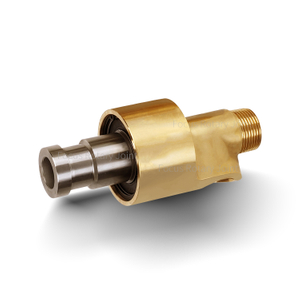

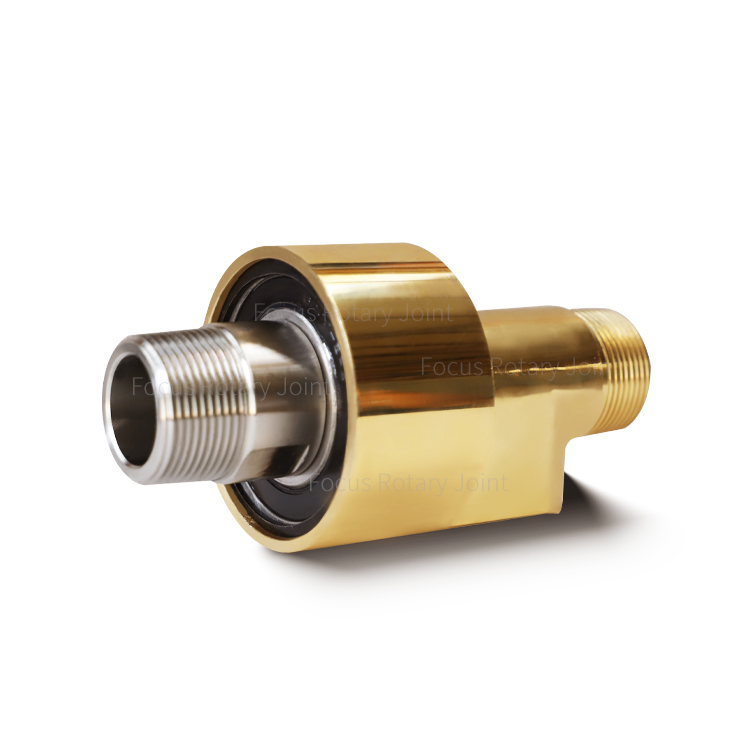

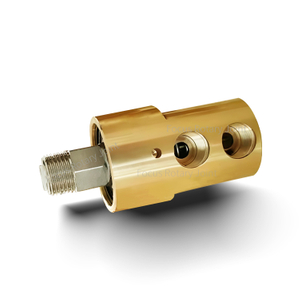

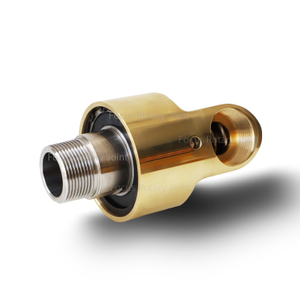

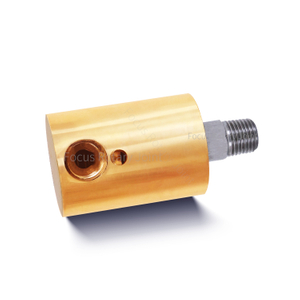

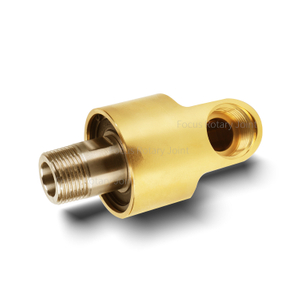

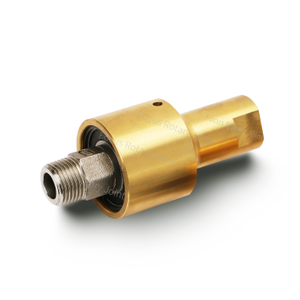

These joints have a rotating shaft with threads on one end that connect to a continuously revolving drum, roller, or other rotating equipment. Use them to transfer hot and cold materials from your supply line. They are for two-way flow and are meant to be used when you need the supply line and the return line to be on the same side of your equipment. Joints are brass for good corrosion resistance. For steam applications use intermittently (up to 20% of operating time).
If your drum rotates counterclockwise as you face the connecting end, you should select a rotating joint with right-handed threads. If your drum rotates clockwise as you face the connecting end, you should select a rotating joint with left-handed threads.
Parameters of H type water rotary joint
Place of Origin | Shandong, China |
| Customized support | OEM, ODM |
| Brand Name | Shandong Focus Machinery Co., Ltd |
| Model | water rotary joint |
| Size | 1/8"~2" |
| Max.Speed | ≤1000r/min |
| Max. Pressure | ≤0.1mpa |
| Max. Temperature | ≤100℃ |
| Suitable medium | Water, air, hydraulic oil, salt water, etc |
Features of H type water rotary joint
These joints have a rotating shaft with threads on one end that connect to a continuously revolving drum, roller, or other rotating equipment. Use them to transfer hot and cold materials from your supply line. They are for two-way flow and are meant to be used when you need the supply line and the return line to be on the same side of your equipment. Joints are brass for good corrosion resistance. For steam applications use intermittently (up to 20% of operating time).
If your drum rotates counterclockwise as you face the connecting end, you should select a rotating joint with right-handed threads. If your drum rotates clockwise as you face the connecting end, you should select a rotating joint with left-handed threads.
