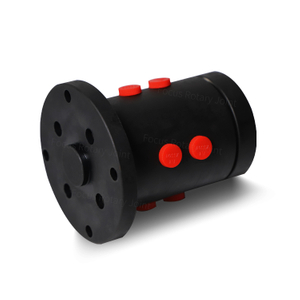

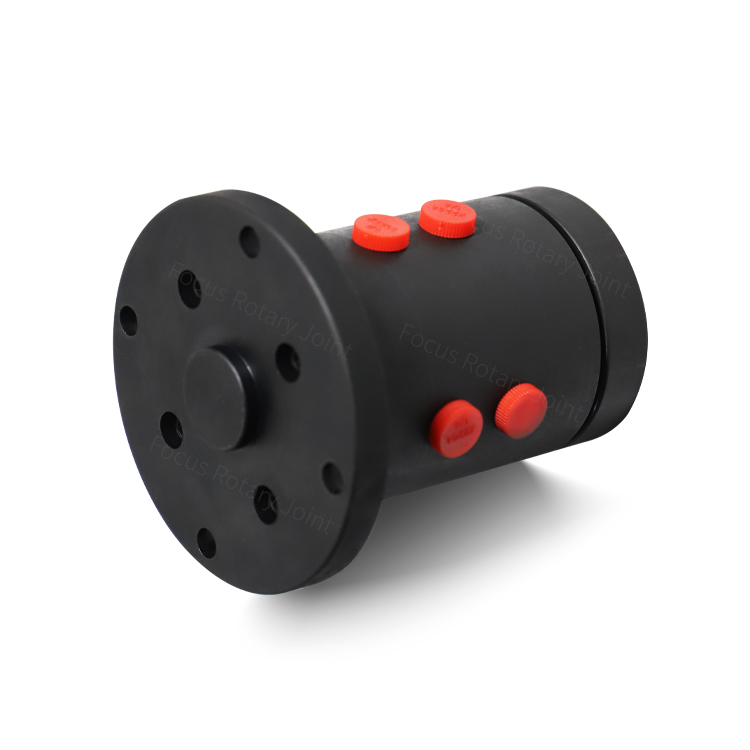

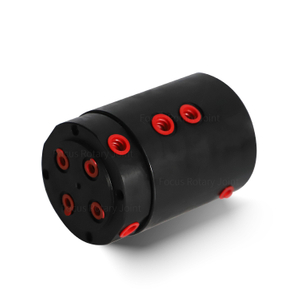

4-station Rotary Joint JDRA4

The multi-station rotary joint for automated equipment turntables is a critical component designed to enable the transfer of fluids, gases, or electrical signals between stationary and rotating parts in multi-position systems.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • JDRA

  • FUXUAN

Parameters of Rotary Timing Valve

MODELJDRA2JDRA4JDRA6JDRA8
Number of circuits2-CIRCUIT4-CIRCUIT6-CIRCUIT8-CIRCUIT
Orifice area mm²

20.4

Using fluidsOrdinary mineral oil-based hydraulic oil (equivalent to ISO-VG32) or air
Maximum operating pressure MPa14/25
Allowable revolutionsVaries due to fluid pressure
Operating ambient temperature °C0-70
Size of piping interfaceRc1/4 (the upper hole thread of the body is Rc1/8)
Weight kg3.05.08.912.9

Features of Rotary Timing Valve

  1. Multiple Circuits: Available in configurations with 2, 4, 6, or 8 circuits to support various applications.

  2. Compatible Fluids: Designed to work with ordinary mineral oil-based hydraulic oil (equivalent to ISO-VG32) or air.

  3. High Operating Pressure: Capable of handling maximum operating pressures of up to 14/25 MPa.

  4. Temperature Range: Suitable for operating ambient temperatures between 0°C and 70°C.

  5. Piping Interface: Features Rc1/4 piping interface with seat cushion type piping on the bottom surface of the body for secure connections.
