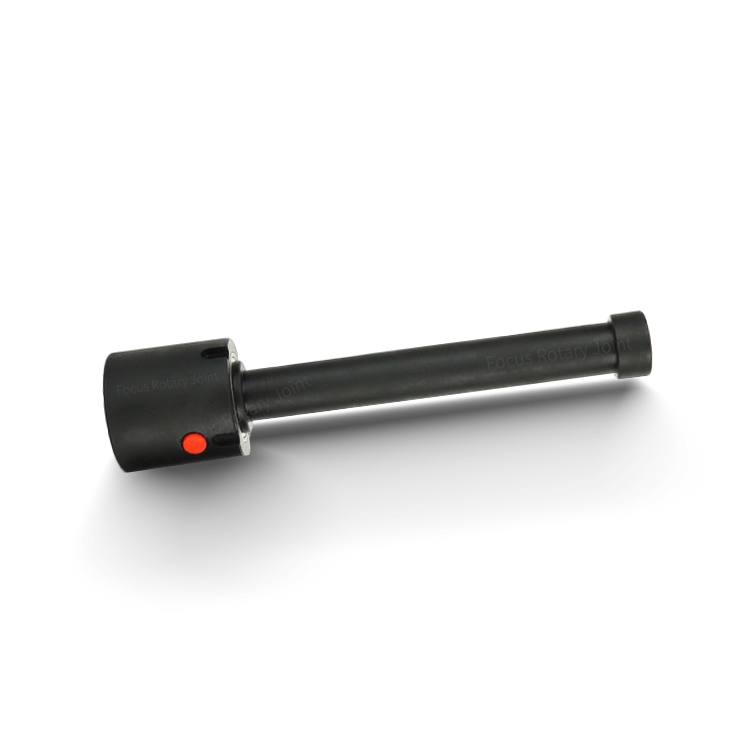

2-255 Oil Separator Workholding Rotary Joint

Oil Separator Workholding Rotary Joint is a cylinder-type rotating connector. It is to supply pneumatic or hydraulic pressure from outside to a fixture on a CNC rotary table. If the pressure is supplied with ordinary hoses, twisting will happen on them while the table rotates. However, the rotary joint can solve this problem when it follows the table rotation. Therefore, it could be possible for automatic loading and unloading of workpieces mounted on the fixture.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 2-255

  • FUXUAN

Parameters of Workholding Rotary Union

Product name
Workholding Rotary Union
Max. Hydraulic Pressure
7,000 PSI
Max. Air Pressure
250 PSI
Max. Vacuum Pressure
28" Hg
Max. Temperature
225° F

Features of Workholding Rotary Union

1、Provides Pneumatic or hydraulic pressure from the table to a fixture.

2、Automation of clamping/unclamping workpieces becomes possible.

3、Cylinder type, Flange Disk type, and Built-in type could be available.
