| Quantity: | |
|---|---|
Parameters of Workholding Rotary Joint:
| Product name | Workholding Rotary Union |
| Max. Hydraulic Pressure | 7,000 PSI |
| Max. Air Pressure | 250 PSI |
| Max. Vacuum Pressure | 28" Hg |
| Max. Temperature | 225° F |
Features of Workholding Rotary Joint：

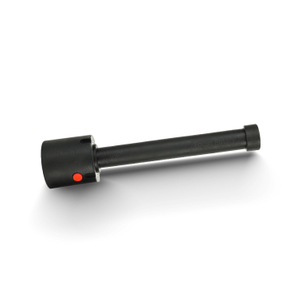

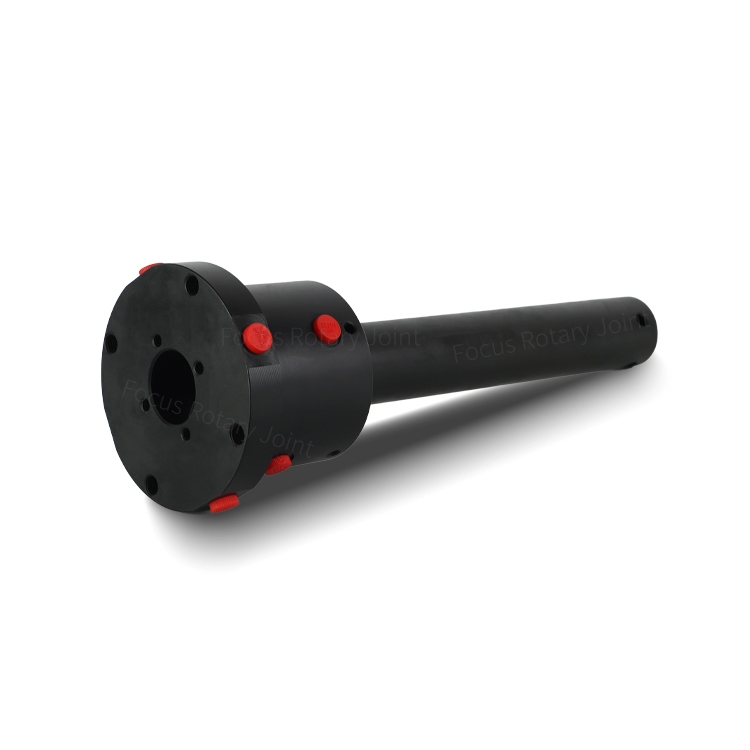

Rotary joint is a rotating connector to supply hydraulic/pneumatic pressure and/or coolant liquid from outside to a jig on a CNC rotary table. If liquid is supplied with ordinary hoses or cables, twisting will happen on them by rotation of the table. However, rotary joints can solve this problem as it rotates in accordance with the table.
Rotary tables with external rotary joint Functions and features
On rotary tables with external rotary joint, the rotary axis rotates in accordance with the table.
External rotary joint can be set on a CNC rotary table after it is purchased.
Advise fluid to be used, pressure, number of port and dimensions.
Special size can be manufactured in regards to customer’s request.
