As industrial manufacturing moves toward high-quality development, the rotary union—a critical sealing component connecting stationary piping to rotating equipment—directly impacts the operational efficiency, safety, and stability of production lines. The H-type rotary union, widely known in the industry as the “water rotary union,” is specifically developed for cooling systems and fluid media transmission. With its compact design, excellent dynamic sealing performance, and wide adaptability to various operating conditions, it has become an indispensable key component in many industries, including rubber and plastics, steel, papermaking, and new energy. This article provides a comprehensive analysis of the H-type rotary union from the perspectives of product characteristics, technical advantages, selection and configuration, installation and maintenance, and industry applications, offering practical reference for equipment engineers and procurement professionals.

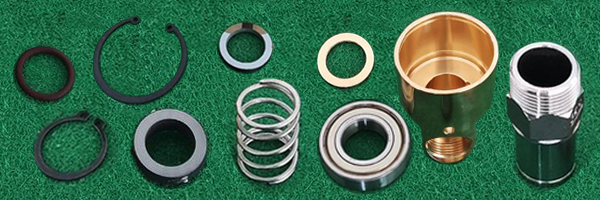

The H-type rotary union is a series of products specifically designed for cooling applications. It adopts a face seal technology and a balanced seal structure. A spring inside the housing pushes the stationary ring to achieve automatic compensation for seal wear, ensuring long-term sealing durability. The friction pair materials are flexibly selected based on the medium environment from high-end combinations such as impregnated graphite, bronze, tungsten carbide, and silicon nitride. These effectively resist the impact of rust, scale, debris, and other contaminants on the sealing face, significantly extending service life.
In terms of core performance specifications, the H-type rotary union achieves a maximum speed of 1000 RPM under normal conditions, and for medium-to-high speed applications, it covers a range of 450–1500 RPM. The maximum pressure rating is 1.0 MPa, with some reinforced models capable of exceeding 1.5 MPa. The temperature range covers normal conditions from 0–100°C, and high-temperature models can withstand up to 180–250°C. In terms of media compatibility, the H-type rotary union is suitable for water, air, brine, hydraulic oil, coolants, vacuum, compressed gases, and various other fluid media, and is widely used in dozens of industries, including rubber, plastics, textiles, food, pharmaceuticals, papermaking, and metallurgy.

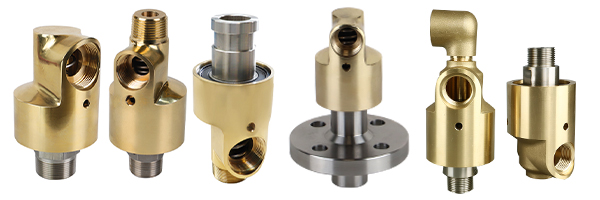

Faced with increasingly complex multi-media and multi-passage transmission requirements, the H-type rotary union offers flexible selection options to accommodate a wide range of engineering adaptation scenarios. First, in terms of flow path and internal tube configuration, the H-type rotary union is available in single-flow and double-flow series. The double-flow series is further divided into the HS-G type (with fixed internal tube) and the HS-X type (with rotating internal tube), each suited to different roll mounting and media inlet/outlet arrangements.
Regarding connection methods and interface specifications, the external tube of the union can be flexibly selected as threaded or flanged based on the equipment journal. For threaded connections, the direction of rotation should be opposite to the roll’s rotation direction to ensure that the connection tightens during operation. For flanged connections, an “F” suffix should be added (e.g., HS-GF cooling water rotary union), further enhancing on‑site assembly convenience and sealing reliability. Additionally, manufacturers support customized solution outputs with CAD‑assisted design and allow the inlet orientation (side or rear entry) to be freely chosen based on application requirements, greatly increasing layout flexibility.
To ensure long-term stable operation of the H-type rotary union, standardized maintenance throughout its life cycle is essential. During installation, first check the rotational flexibility of the union and ensure that the media supply lines match the union’s ports. For threaded connections, ensure that the external tube body is concentrically installed with the equipment journal and locked securely. Depending on the medium (e.g., steam or thermal oil), apply high‑temperature sealant as needed. For flanged connections, place a copper sealing washer inside the shaft bore and properly connect the union to the internal tube. If the internal tube is a siphon pipe, ensure that the siphon nozzle points vertically downward. Tighten bolts diagonally with uniform torque. For applications requiring anti-rotation, use an anti-rotation rod with a lifting ring. The rod diameter should be 2–3 mm smaller than the lifting ring bore to allow the necessary swinging freedom while preventing rotation.
During routine operation, it is recommended to add lubricating grease to the bearing grease fittings and rolling elements every 15 days. When sealing components wear out, they should be replaced promptly. Typical replacement intervals for standard graphite seals are one year, while high-performance sealing materials such as antimony‑impregnated graphite, ceramic rings, and cemented carbide can last up to three years. For long‑term shutdown maintenance, disassemble the union, clean internal debris, add an appropriate amount of anti‑rust lubricating grease, and keep the roll interior dry to prevent scale or rust that could cause seizure or leakage.
Proper selection is only the beginning; the true value lies in full lifecycle service. Experienced rotary union manufacturers provide one‑stop services ranging from “pre‑sale solutions” to “after‑sales support.” During the selection phase, they not only refer to standard parameters but also offer customized matching solutions and engineering adaptation advice for extreme conditions such as high temperature, high pressure, and high speed. During installation, they provide comprehensive installation guidelines and standardized training materials to help operators avoid common mistakes that can lead to leakage. For warranty and after‑sales support, most reputable manufacturers offer 365‑day warranty support for product quality issues, as well as 24/7 technical support and emergency response channels, ensuring customers receive professional assistance promptly in case of unexpected problems.
With the ongoing advancement of industrial automation and green manufacturing transformation, the rotary union market is steadily expanding. According to industry analysis, the global industrial fluid rotary union market reached approximately USD 693 million in 2025 and is expected to grow at a compound annual growth rate of about 3.8% to reach USD 897 million. The overall global rotary union market was valued at approximately RMB 26.1 billion in 2023 and is expected to approach RMB 33.52 billion by 2030. As a major manufacturing country, China accounts for nearly 30% of global rotary union production capacity. Against this backdrop, manufacturing clusters in regions such as Shandong and Jiangsu are accelerating their transformation from “followers” to “leaders,” continuously delivering cost‑effective domestic rotary union products to the market with higher precision standards, stable delivery capabilities, and reliable sealing technology.
In the precision field of rotary unions, where small components make a big difference, the H-type rotary union uses its compact size to shoulder the sealing responsibility of fluid media transmission, responding to industry pain points and market expectations through technological upgrades. From detailed selection to scientific maintenance, from standard products to tailored customized solutions, manufacturers must deliver not only the product itself but also comprehensive technical services and long‑term operational support. Only by continuously deepening both technology and service can manufacturers truly become trusted partners in fluid sealing—helping every customer maximize production value through efficient, low‑consumption, and stable equipment operation.
