The DEUBLIN 1115 series is a single-channel, balanced mechanical seal rotary union designed for high-speed dry gas or lightly lubricated gas applications. It features a compact, self-supported design with an anodized aluminum housing, stainless steel rotor, and permanently lubricated bearings – ideal for mounting at the end of high-speed spindles.
Parameter | Typical Value (Gas Media) | Notes |
|---|---|---|
Max. Speed | Up to 15,000 rpm | Model dependent |
Max. Pressure | 10 bar (≈145 psi) | For gas media only |
Max. Temperature | 121°C (≈250°F) | |
Media | Dry air, lubricated gas, hydraulic oil, vacuum | Some models support coolant/MQL |
Design Features | Balanced silicon carbide seal, full flow design, radial housing connection, lifetime lubricated bearings | |
Materials | Housing: anodized aluminum; Rotor: stainless steel |
Special models (e.g., 1115-009-386) also support water-based coolant and MQL at pressures up to 10 bar or higher – always verify the exact model data sheet.
Model | Rotor Connection | Housing Connection | Remarks |
|---|---|---|---|
1115-000-001 | — | — | Single-channel self-supported design for air, hydraulic oil, vacuum |
1115-000-002 | 3/8"-18 NPT RH | 3/8"-18 NPT | Felt seal cavity for air service |
1115-000-017 | 5/8"-18 UNF LH | 3/8"-18 NPT | For air, hydraulic oil, vacuum |
1115-000-200 | M16×2 RH | 3/8"-18 NPT | — |
1115-000-205 | G 3/8" RH | 3/8"-18 NPT | Balanced mechanical seals |
1115-000-353 | M16×1.5 LH, 16 mm pilot | 3/8"-18 NPT | 0.631" pilot diameter |
1115-009-238 | 5/8"-18 UNF RH | 3/8"-18 NPT | — |
1115-009-386 | 5/8"-18 UNF LH | 3/8"-18 NPT | Supports water-based coolant and MQL at 12,000 rpm |
1115-009-556 | M16×1.5 LH, 18 mm pilot | 3/8"-18 NPT | — |
1115-130-002 | 3/8"-18 NPT RH | 1/4"-18 NPT | Dimensions A: 3/8"NPT RH; B: 1/4"NPT |
1115-130-017 | 5/8"-18 UNF LH | 1/4"-18 NPT | Pressure 10 bar, Temp max 121°C |
1115-130-205 | G 3/8" RH (BSP) | 1/4"-18 NPT | For air, hydraulic oil, vacuum |
1115-157-238 | 5/8"-18 UNF RH | 3/8"-18 NPT | — |
1115-179-001 | 5/8"-18 UNF RH | 1/4"-18 NPT | Pressure 10 bar, Temp max 121°C |
1115-179-205 | — | — | — |
1115-179-345 | 5/8"-18 UNF RH | 1/4"-18 NPT | 0.625" pilot diameter |
1115-181-430 | M16×1.5 LH, 16 mm pilot | 1/4"-18 NPT | 0.631" pilot diameter |
1115-181-556 | M16×1.5 LH, 18 mm pilot | 1/4"-18 NPT | 0.708" pilot diameter |
1115-241-430 | M16×1.5 LH, 16 mm pilot | 1/4"-18 NPT | For coolant, air, steam, hot water, hot oil |
1115-251-430 | M16×1.5 LH, 16 mm pilot | 3/8"-18 NPT | — |
1115-251-556 | M16×1.5 LH, 18 mm pilot | 3/8"-18 NPT | Pressure 10 bar, Temp max 121°C |
Note: “—” indicates that the specific connection size was not specified in the search results available. Always refer to the original DEUBLIN data sheet for confirmation.
Gas sealing or cooling of high-speed spindles
MQL (minimum quantity lubrication) delivery in dry machining
Vacuum pick-up systems
Pneumatic chucks or actuators
All manufacturers listed are located in or near Tengzhou, Shandong Province – known as the "Hometown of Rotary Unions in China". Provide the original DEUBLIN model number when inquiring.
Manufacturer / Brand | Location | Key Features | Website |
|---|---|---|---|

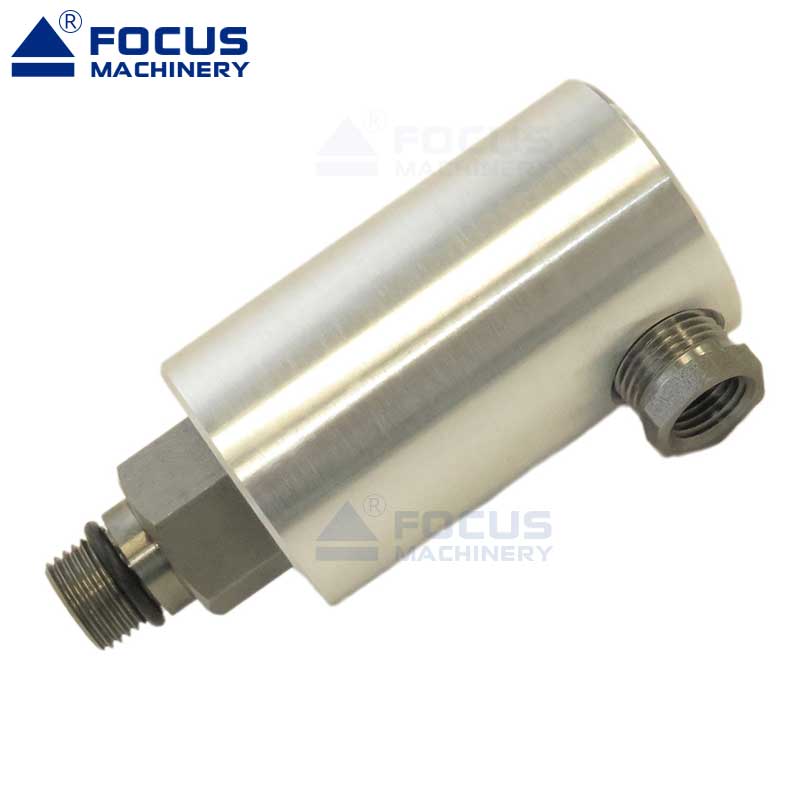

Shandong Focus Machinery Co., Ltd. (FOCUS/FUXUAN) | Tengzhou, Shandong | Offers performance replacement 1115-181-556 for 1115 series at 4,000 rpm, supports water-based coolant and MQL. |
Mating dimensions first: For special models with M16×1.5 LH thread and specific pilot diameters, always provide the original model number or these two critical dimensions to the supplier.
Performance validation: Before bulk purchase, request a sample test under your actual operating conditions (high speed, high pressure, or special media like MQL).
After-sales support: Prefer local manufacturers that offer technical support and warranty.
