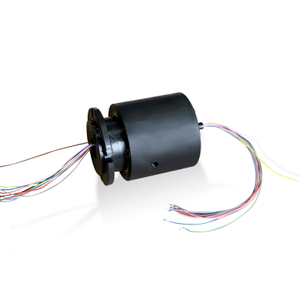

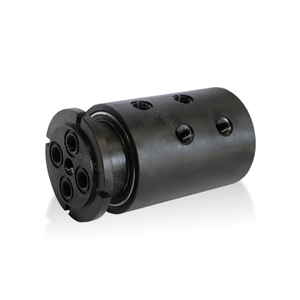

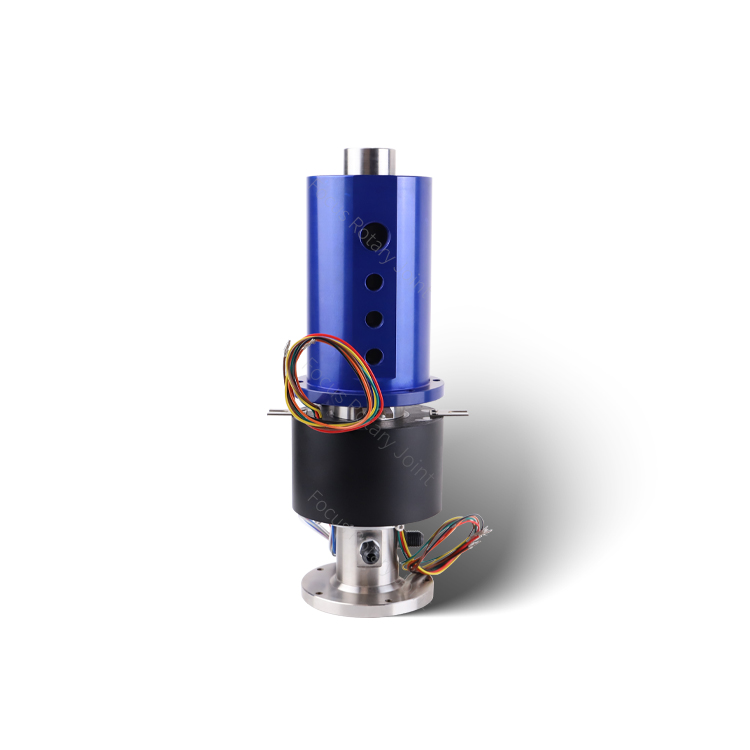

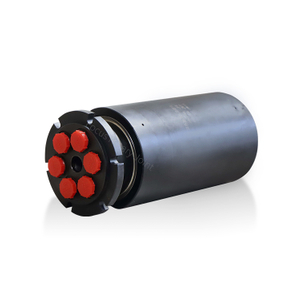

Hydraulic Electrical Slip Ring Rotary Joints

A Hydraulic Electrical Slip Ring Rotary Joint (also called a hybrid rotary union or electro-hydraulic swivel) is a combined device that transmits both hydraulic fluid/pneumatic media and electrical signals/power between stationary and rotating parts of machinery. It enables continuous rotation while preventing hose/twisting and wire tangling.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Parameters of Hydraulic Electrical Slip Ring Rotary Joint

ParameterValue
Working LifeOver 10 Million Revs
Rated Rotating Speed500 RPM
Working Temperature-30°C ~ 80°C
Operating Humidity0 ~ 85% RH
Contact MaterialPrecious Metal
Housing MaterialAluminium Alloy
Protection GradeIP51

Key Features of Hydraulic Electrical Slip Ring Rotary Joints:

  • Hydraulic Passages: Transfers pressurized fluid (oil, water, air) through rotating seals.

  • Electrical Slip Rings: Conducts power and signals (e.g., Ethernet, CAN bus, sensors) via brushes and rings.

  • Modular Design: Can integrate multiple hydraulic lines and electrical circuits in one unit.

  • High-Pressure & High-Speed: Rated for hydraulic pressures (up to 5,000+ PSI) and varying RPMs.

  • Robust Sealing: Prevents fluid leaks and protects electrical contacts from contamination.
