In the fields of hydraulic systems, high-pressure cleaning, construction machinery, and industrial automation, hoses are the lifeline of fluid transmission. However, the tangling, kinking, and stress caused by bending and rotating hoses have always been persistent pain points for equipment engineers. The hose swivel joint—a sealed connection device designed specifically to enable relative rotational movement between a hose and equipment—is the key component that solves this problem. With core features such as 360° free rotation, kink resistance, high-pressure tolerance, and leak prevention, the hose swivel joint has become an indispensable “joint” in flexible piping systems. It is widely used in construction machinery hydraulic circuits, high-pressure cleaning equipment, hose reel systems, industrial automation pneumatic lines, and petrochemical loading arms, among many other fields.
A hose swivel joint is a pipe connection component that enables 360° free rotation while maintaining reliable dynamic sealing performance. Its core function is: when a hose needs to rotate, swing, or articulate with equipment, the swivel joint acts as a rotatable “joint” connected between the hose and the equipment or between two hose sections, allowing high-pressure fluid or gas to be transmitted smoothly while the hose continuously swings and rotates. At the same time, it effectively eliminates torsional stress, preventing tangling, kinking, and fatigue damage to the hose wall.
From a functional perspective, the value of a hose swivel joint is reflected in three main aspects. First, anti‑tangling: through the precise coordination of embedded bearing structures and sealing rings, bidirectional free rotation is achieved without compromising internal media sealing. Especially in applications with frequently moving equipment or long‑run hose routing, the swivel joint fundamentally avoids tangling caused by hose twisting. Second, kink resistance: the swivel joint transfers the relative rotational movement between the two ends of the hose to the joint’s interior, so the hose body no longer bears excessive torsional torque, effectively extending hose service life and reducing the risk of burst and leakage. Third, high‑pressure tolerance: high‑quality swivel joints use precision‑fitted designs such as micro‑lapping of sealing faces and can withstand working pressures of thousands or even tens of thousands of PSI, maintaining leak‑free sealing and smooth rotation even under pressure.
Hose swivel joints are used in a very wide range of applications, covering almost all scenarios where hoses are used for fluid transmission accompanied by rotational movement.
Construction machinery and hydraulic systems represent one of the most important application areas for swivel joints. In excavators, cranes, hydraulic manipulators, and other equipment, swivel joints are installed at moving joints in hydraulic circuits, allowing high‑pressure hoses to rotate freely during equipment operation without excessive stress, while maintaining sealing integrity of the hydraulic system. In addition, hydraulic swivel joints are widely used in coiling machines, hydraulic rotary platforms, machining center tables, and other low‑speed, high‑pressure rotating equipment requiring multi‑passage media transmission.
High‑pressure cleaning equipment is another typical application. During operation, operators frequently move the spray gun, and the hose can easily become tangled or kinked. A swivel joint installed between the gun end and the hose, or between the gun head and the hose, enables 360° free rotation between the hose and the gun head, maintaining sealing and kink resistance at working pressures of 10–15 MPa, significantly improving operational flexibility and efficiency.
Hose reel systems place higher demands on swivel joints. In automatic hose reels, umbilical hose drums, and hydraulic hose reels, the swivel joint is installed at the reel’s center of rotation, connecting a fixed inlet pipe on one side and a hose wound on the drum on the other. When the drum winds or unwinds the hose, the swivel joint rotates with the drum to achieve dynamic sealing, ensuring uninterrupted fluid or gas supply. Some high‑pressure applications require swivel joints with pressure ratings exceeding 20,000 PSI.
Industrial automation and robotics also widely use hose swivel joints. In pneumatic line connections between automated workstations, or lubrication/coolant lines at robot arm joints, swivel joints serve as dynamic interfaces between flexible hoses and rigid equipment in confined spaces, preventing fatigue damage to hoses from prolonged movement. The chemical and petrochemical industry demands high safety and corrosion resistance. Swivel joints are widely used in hose piping systems, loading arms, hose reels, and wastewater treatment equipment. They can be made of stainless steel, 316 stainless steel, alloy steel, bronze, aluminum, and other materials to suit corrosive media and harsh conditions.
The structural design of a hose swivel joint varies with the application, and proper selection is key to ensuring long‑term reliable operation.

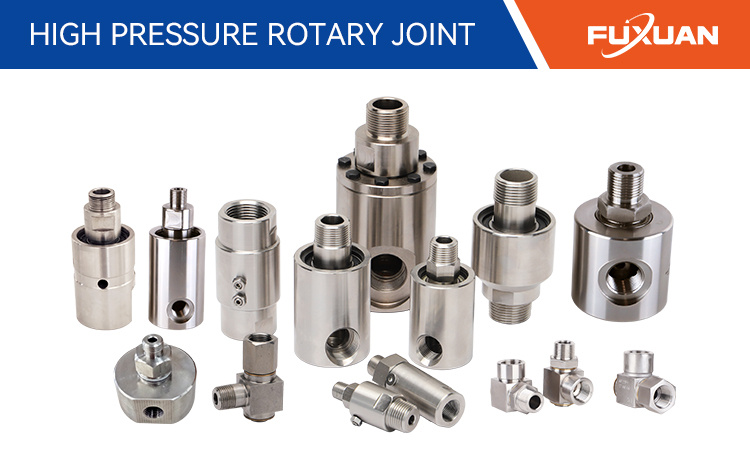

In terms of rotation angle and external configuration, mainstream products include straight‑through, 90° elbow, dual‑plane, and Z‑shaped designs. The straight‑through type is suitable where axial space is ample, offering optimal sealing performance. The 90° elbow type turns the piping direction vertically, often used where space is limited or the hose routing requires a bend. Dual‑plane types allow multi‑directional articulation, while Z‑shaped types suit more complex three‑dimensional hose routing needs. Selection should be based on the hose routing and movement trajectory.
Regarding seal materials, the sealing components of a hose swivel joint are typically selected according to the media type. For hydraulic oil systems, FKM (fluoroelastomer) seals are the mainstream choice due to their strong oil resistance. For water or coolant media, NBR (nitrile rubber) or EPDM are more suitable. For high‑temperature and highly corrosive media, some high‑end joints can be equipped with Kalrez perfluoroelastomer seals or silicon carbide ceramic sealing faces.
In terms of operating parameters, the core specifications of a hose swivel joint include working pressure, speed range, and applicable temperature. General‑purpose products on the market typically operate at pressure ≤1.0 MPa, speed ≤20 RPM, and temperature ≤100°C. High‑pressure hydraulic models can withstand up to 31.5 MPa or even higher. Ultra‑high‑pressure cleaning joints can operate at working pressures above 150 MPa.
Regarding port design, swivel joints are divided into single‑passage and multi‑passage types. Single‑passage swivel joints are suitable for unidirectional flow of a single medium and are compact. Multi‑passage swivel joints have two or more independent flow paths and can simultaneously transmit multiple media such as hydraulic oil, water, and air. They are suitable for hose reels, machining center rotary tables, and other applications requiring combined functions.
During selection, it is recommended to first define the core parameters: medium type (water, oil, gas, or chemicals), working pressure and temperature, rotation range and speed, connection thread size, and whether multi‑passage is needed. Based on these, match the corresponding product model. For non‑standard conditions, most manufacturers support custom design and CAD‑assisted solution output to ensure the swivel joint perfectly matches the equipment.
Correct installation and standardized daily maintenance are essential for extending the service life of hose swivel joints and reducing unexpected failures.
Key installation points: The connection between the swivel joint and the piping should be made using a flexible hose; rigid connections are prohibited. When using metal hose or high‑pressure rubber hose as a transition, the hose should be in a naturally bent state, avoiding forced stretching or excessive bending. During installation, ensure that the joint axis and the equipment rotation axis are as concentric as possible, and provide appropriate anti‑rotation and support devices. The support point should not be too tight; it is best if the installed hose can be slightly shaken by hand, allowing the joint to automatically compensate for coaxiality deviation during operation. For threaded‑connection swivel joints, pay attention to whether the thread direction is opposite to the equipment rotation direction to avoid loosening during operation.
Daily maintenance: Regularly check the sealing face of the swivel joint for oil stains or leakage, and for abnormal noise or sticking during rotation. For joints equipped with a lubrication port, replenish grease according to the specified schedule to ensure smooth bearing operation and seal wear resistance. When the sealing face shows excessive wear or scoring, replace the seal assembly promptly. Typical replacement intervals for ordinary rubber seals are 6–12 months, while high‑end joints using silicon carbide or cemented carbide sealing pairs can have significantly longer service lives under proper use. Also, keep the media in the piping clean; install a filter if necessary to prevent rust, debris, and other contaminants from entering the swivel joint and causing abnormal wear on the sealing faces.
In recent years, as global manufacturing shifts toward intelligent and green production, the market demand for high‑performance, long‑life, low‑maintenance swivel joints has continued to grow. In the hose swivel joint segment, China, as a major manufacturing country, has seen the emergence of a number of companies that stand out in technology R&D, product quality, and market application.
Lux Mechanical is an innovative high‑tech enterprise founded in 2001, holding 49 authorized patents and recognized as a national “Little Giant” specialized and sophisticated enterprise. Its self‑developed dry, drip‑free hose coupling features an ingenious rotatable male end and anti‑slip nut design, achieving a “twist‑to‑lock” convenient operation. Even under high pressure, the connection remains dry, effectively solving the industry pain point of easy leakage and dripping when conventional hose couplings are disconnected. This coupling offers three technical advantages: automatic interlock drip‑free, quick hose connection, and 360° twist protection, providing a safe and efficient fluid transfer solution for automotive parts, ship assembly, valve piping, aerospace, and other fields.
The industrial cluster in Tengzhou, Shandong Province—represented by companies such as Yuhang Aerospace, Deweier, Shengrong, and Modern Seal—has accumulated deep technical expertise in the swivel joint field. Yuhang Aerospace Equipment is a Shandong provincial specialized and sophisticated SME, a high‑tech enterprise, with 58 patents. Its products include swivel joints, metal hoses, pipe expansion joints, quick‑change couplings, etc., widely serving steel, papermaking, packaging, chemical, food, pharmaceutical, and many other industries. Deweier Machinery has long been dedicated to research on sealing, friction, and heat transfer technology, with deep technical accumulation in swivel joints, metal hoses, and mechanical seals. Its products can successfully replace various imported rotary unions from DuBoulin, Maier, SGK, and others. Shandong Modern Seal Technology & Equipment is a “specialized and sophisticated” high‑tech enterprise integrating R&D and manufacturing. Its products not only cover traditional industries such as steel, papermaking, plastics, rubber, printing and dyeing, and chemicals, but also support defense, aerospace, aviation, and high‑speed rail. Some products have been successfully exported to international markets.
Chinese hose swivel joint manufacturers are transforming and upgrading from “followers” to “leaders,” continuously delivering cost‑effective products to the market with higher precision standards, more reliable sealing technology, and more convenient operation designs, serving production practices across all industries.
Although small in size, the hose swivel joint is a precision “joint” in flexible piping systems that combines the three core functions of anti‑tangling, kink resistance, and high‑pressure tolerance. From construction machinery to high‑pressure cleaning, from automated production lines to petrochemicals, the hose swivel joint protects every fluid transmission with its reliable sealing performance and flexible rotation capability. For equipment manufacturers and end users, proper product selection, scientific installation, and standardized maintenance are the fundamental guarantees for long‑term, efficient operation of swivel joints. For swivel joint manufacturers, deepening technology R&D, strictly controlling product quality, and providing full‑process technical services are the keys to becoming a trusted partner in fluid transmission.
